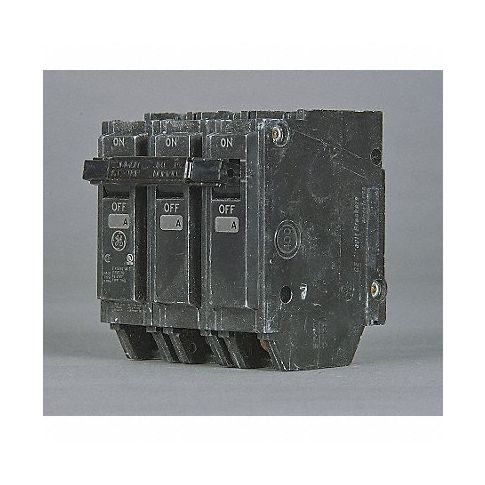

Circuit Breaker 100A Plug In 120/240V 3P MPN:THQL32100

These THQP, THQL, and THHQL series miniature circuit breakers plug into place in panelboards and load centers without requiring DIN rail, so they're easier to install than unit-mount breakers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications.

Technical Specifications

• Item Miniature Circuit Breaker
• Amps 100 A
• AC Voltage Rating 120/240V AC
• Circuit Breaker Type Standard
• Number of Poles 3
• DC Voltage Rating Not Rated
• Circuit Breaker Actuator Toggle
• Circuit Breaker Mounting Style Plug In
• Compatible Panelboard/Load Center Series AQ
• Phase Three
• Series THQL
• Max. AIR Rating 10kA at 120/240V AC
• For Use With Power Mark Gold Load Centers and AQ Lighting Panels
• Terminal Connection Lug
• Frame Size 100A/THQ
• Length 3.28 in
• Width 3 in
• Depth 2.38 in
• Min. Wire Size 6 AWG
• Max. Wire Size 1/0 AWG
• Standards UL Listed

Manufacturer Details

• Manufacturer: GE
• Condensed Mfg Number: THQL32100
• MPN: THQL32100

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536300000
• GDS Category Name: Miniature Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
