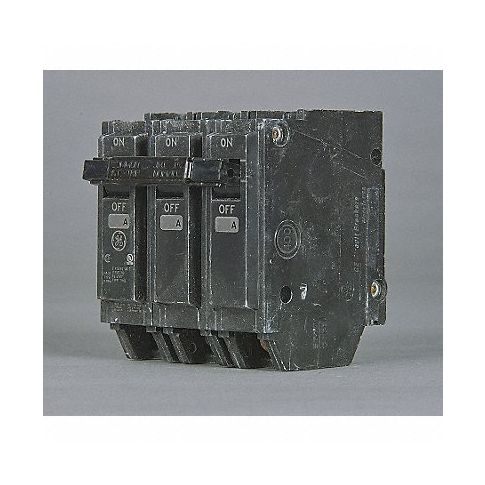

Circuit Breaker 20A Plug In 120/240V 3P MPN:THQL32020
Introducing the Circuit Breaker 20A Plug In 120/240V 3P from Ge - perfect for all your HACR (heating, air conditioning, and refrigeration) needs. Our THQP, THQL, and THHQL series miniature circuit breakers are easy to install in your panelboards and load centers, eliminating the need for DIN rail mounting. Designed with your safety in mind, these breakers automatically interrupt currents when faults are detected, keeping you and your equipment protected from electrical hazards. With their bus bar connections, they also simplify your wiring process by eliminating the need for pigtail wires, helping to organize your panelboard or load center. These breakers come UL listed, ensuring compliance with safety standards and giving you peace of mind. Experience the benefits of the Circuit Breaker 20A Plug In 120/240V 3P from Ge in your next HACR project!
Top product features:
- Easy installation without requiring DIN rail mounting
- Automatic interrupt of currents when faults are detected
- Bus bar connections to simplify wiring and organize panelboard or load center
Top product applications:
- HVAC systems
- Electrical panels
- Emergency power supply systems
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series AQ
- Phase Three
- Series THQL
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Power Mark Gold Load Centers and AQ Lighting Panels
- Terminal Connection Screw Clamp
- Frame Size 100A/THQ
- Length 3.28 in
- Width 3 in
- Depth 2.38 in
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards UL Listed
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: THQL32020
- MPN: THQL32020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9027100000
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 25, 2023 10:32am UTC Category: Distribution
