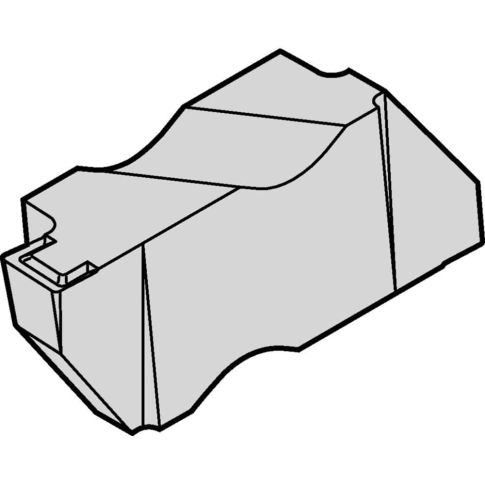

Grooving Inserts, Insert Style: NG-K , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.0469 , Cutting Width (mm): 1.190 , Insert Hand: Left Hand MPN:3607374

Discount: See in Cart
Free Shipping
In Stock
Brand: Widia
Part #: 3607374
SKU
310-19016344
134.95 for Minimum Order Qty of 5
Regular Price $28.22 Special Price $26.99 Each
Grooving Inserts, Insert Style: NG-K , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.0469 , Cutting Width (mm): 1.190 , Insert Hand: Left Hand MPN:3607374 is available to buy in increments of 5
Grooving Inserts; Insert Style: NG-K ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.0469 ; Cutting Width (mm): 1.190 ; Insert Hand: Left Hand ; Maximum Depth of Cut (Decimal Inch): 0.0748

Iscar's grooving inserts provide precise and efficient cutting capabilities for professionals across various industries. With a size code of 3 and a cutting width of 0.0469 (1.190mm), these left-hand inserts offer an excellent balance between material removal rates and tool life. The NG-K style provides excellent wear resistance and durability, suitable for ferrous metals and plastics. The cutting width ensures a thin chip layer, minimizing chatter during machining operations, while its left-hand design is ideal for applications requiring chip evacuation. These grooving inserts are perfect for professionals who demand accuracy, performance, and long tool life from their cutting tools. They're widely used in automotive, aerospace, and machine tool manufacturing industries where precision machining of steel, aluminum, and titanium components is required.

  • Grooving Inserts
  • Insert Style: NG-K
  • Insert Size Code: 3
  • Cutting Width (Decimal Inch): 0.0469
  • Cutting Width (mm): 1.190
  • Insert Hand: Left Hand
  • Maximum Depth of Cut (Decimal Inch): 0.0748

Product Information

  • : 3607374
  • Ansi Code: NG3047LK
  • Chip Breaker: K
  • Coating Classification: PVD
  • Coating Process: PVD
  • Coating/Finish: TiAlN
  • Corner Radius (Decimal Inch): 0.0075
  • Corner Radius (mm): 0.19
  • Cutting Height (Decimal Inch): 0.0748
  • Cutting Height (mm): 1.90
  • Cutting Tool Application: Grooving; Turning
  • Cutting Width (Decimal Inch): 0.0469
  • Cutting Width (Inch): 3/64
  • Cutting Width (mm): 1.190
  • For Use With: Grooving; Turning
  • Full Radius: No
  • Gage Diameter (Decimal Inch): 0.3750
  • Gage Diameter (Inch): 3/8
  • Groove Width (mm): 1.19
  • Hole Diameter (Decimal Inch): 0.0000
  • Hole Diameter (Mm) ( - 0 Decimals): 0.0000
  • Insert Hand: Left Hand
  • Insert Height (Decimal Inch): 0.3440
  • Insert Holding Method: Clamp
  • Insert Material: Carbide
  • Insert Seat Size: 3
  • Insert Size: 3
  • Insert Size Code: 3
  • Insert Style: NG-K
  • Insert Thickness: 8.74
  • Insert Thickness (Decimal Inch): 0.3440
  • Iso Code: NG3047LK
  • Lead Angle: 11.000
  • Manufacturer Grade: TN6025
  • Manufacturers Catalog Number: False
  • Maximum Corner Radius (Decimal Inch): 0.0075
  • Maximum Depth of Cut (Decimal Inch): 0.0748
  • Maximum Depth of Cut (mm): 1.90
  • Maximum Groove Width (mm): 1.19
  • Minimum Corner Radius (Decimal Inch): 0.0100
  • Minimum Groove Width (mm): 1.19
  • Minimum Insert Width (mm): 4.98
  • Multi-Use Tool: Yes
  • Number of Cutting Edges: 2
  • Overall Length (Decimal Inch): 0.8860
  • Overall Length (mm): 22.5100
  • Overall Width (Decimal Inch - 4 Decimals): 0.1960
  • Overall Width (mm): 4.9800
  • Primary Workpiece Material: Cast Iron; Stainless Steel; Super-alloys & Titanium; Steel
  • Primary Workpiece Material Code: K; N; P; S
  • Rake: Positive
  • Rake Angle: 10.000
  • Relief Angle: 11
  • Secondary Workpiece Material: Non-Ferrous Metal
  • Secondary Workpiece Material Code: N
  • Series: NG-K
  • Single Or Double End: Single
  • Style: Top Notch Grooving Insert
  • Thickness (Inch): 11/32
  • Type: Top Notch Grooving Insert

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: No
  • Country of Origin: US, United States
  • TAA Compliant: Yes
  • UNSPSC: 23242105
  • CA Restricted (Prop 65): Unknown
  • Package Weight: 0.02
  • Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:21am UTC Category: Grooving Inserts
