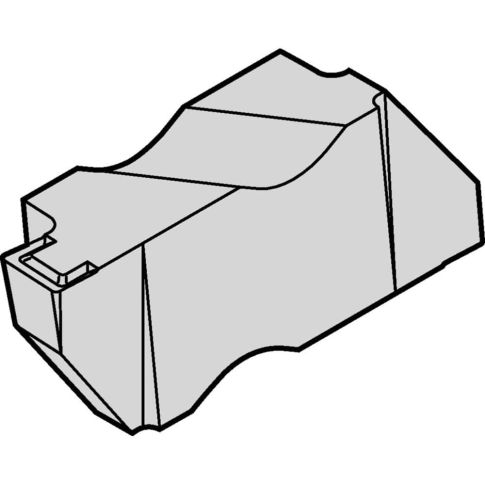

Grooving Inserts, Insert Style: NG-K , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.1772 , Cutting Width (mm): 4.500 , Insert Hand: Left Hand MPN:3607369
Grooving Inserts, Insert Style: NG-K , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.1772 , Cutting Width (mm): 4.500 , Insert Hand: Left Hand MPN:3607369 is available to buy in increments of 10
Grooving Inserts; Insert Style: NG-K ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.1772 ; Cutting Width (mm): 4.500 ; Insert Hand: Left Hand ; Maximum Depth of Cut (Decimal Inch): 0.1500
These grooving inserts are designed for use with milling cutters to create internal and external thread forms in a wide range of materials. With an insert size code of 3 and a cutting width of 0.1772 (4.50 mm), they provide precise and accurate thread cutting capabilities in applications such as manufacturing, automotive repair, and industrial machinery. They are constructed from high-quality carbide for superior durability and resistance to wear, ensuring consistent performance over time. Additionally, their insert hand of left hand makes them suitable for use in right-hand milling operations, further increasing their versatility and usefulness in various industries.
- Grooving Inserts
- Insert Style: NG-K
- Insert Size Code: 3
- Cutting Width (Decimal Inch): 0.1772
- Cutting Width (mm): 4.500
- Insert Hand: Left Hand
- Maximum Depth of Cut (Decimal Inch): 0.1500
Product Information
- : 3607369
- Ansi Code: NG3M450LK
- Chip Breaker: K
- Coating Classification: PVD
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.0126
- Corner Radius (mm): 0.32
- Cutting Height (Decimal Inch): 0.1500
- Cutting Height (mm): 3.81
- Cutting Tool Application: Grooving; Turning
- Cutting Width (Decimal Inch): 0.1772
- Cutting Width (mm): 4.500
- For Use With: Grooving; Turning
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Gage Diameter (Inch): 3/8
- Groove Width (mm): 4.50
- Hole Diameter (Decimal Inch): 0.0000
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Insert Hand: Left Hand
- Insert Height (Decimal Inch): 0.3440
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Seat Size: 3
- Insert Size: 3
- Insert Size Code: 3
- Insert Style: NG-K
- Insert Thickness: 8.74
- Insert Thickness (Decimal Inch): 0.3440
- Iso Code: NG3M450LK
- Lead Angle: 11.000
- Manufacturer Grade: TN6025
- Manufacturers Catalog Number: False
- Maximum Corner Radius (Decimal Inch): 0.0126
- Maximum Depth of Cut (Decimal Inch): 0.1500
- Maximum Depth of Cut (mm): 3.81
- Maximum Groove Width (mm): 4.50
- Minimum Corner Radius (Decimal Inch): 0.0150
- Minimum Groove Width (mm): 4.50
- Minimum Insert Width (mm): 4.98
- Multi-Use Tool: Yes
- Number of Cutting Edges: 2
- Overall Length (Decimal Inch): 0.8860
- Overall Length (mm): 22.5100
- Overall Width (Decimal Inch - 4 Decimals): 0.1960
- Overall Width (mm): 4.9800
- Primary Workpiece Material: Cast Iron; Stainless Steel; Super-alloys & Titanium; Steel
- Primary Workpiece Material Code: K; N; P; S
- Rake: Positive
- Rake Angle: 10.000
- Relief Angle: 11
- Secondary Workpiece Material: Non-Ferrous Metal
- Secondary Workpiece Material Code: N
- Series: NG-K
- Single Or Double End: Single
- Style: Top Notch Grooving Insert
- Thickness (Inch): 11/32
- Type: Top Notch Grooving Insert
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:02am UTC
Category: Grooving Inserts
