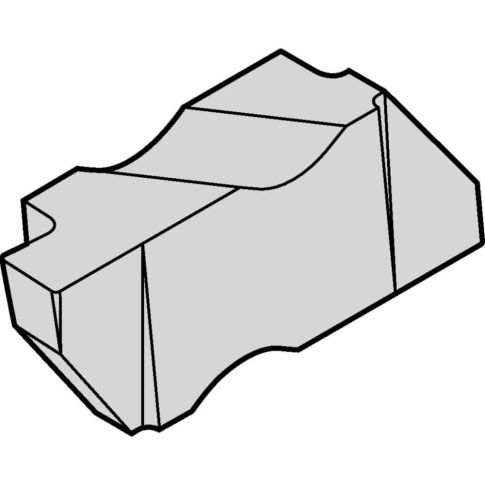

Grooving Inserts, Insert Style: NG , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.1250 , Cutting Width (mm): 3.180 , Insert Hand: Right Hand MPN:3607375
The grooving inserts feature exceptional strength, wear resistance and heat dissipation properties compared to traditional carbide cutters with an impressive range of styles that cater to various applications and materials ranging from metal to plastics or wood materials ensuring versatility in use. Made from high-quality steel construction, its right-handed insert provides optimal stability while reducing tool vibration during operation thus providing superior accuracy, finishes while promoting user safety at the workplace. The available mounting styles cater to different machinery allowing for easy attachment or removal onto power drills, milling machines with quick-release systems thus making it ideal for use by manufacturers, craftsmen, automotive enthusiasts among others seeking high-quality finishing on their projects or parts. With its smooth and precise performance in die casting, mold making, jewelry making, automotive restoration among other industries the grooving inserts offer unparalleled value for money in terms of cost savings on raw materials, reduced downtime or time spent while increasing productivity thus contributing to profitability in various sectors.
- Grooving Inserts
- Insert Style: NG
- Insert Size Code: 3
- Cutting Width (Decimal Inch): 0.1250
- Cutting Width (mm): 3.180
- Insert Hand: Right Hand
- Maximum Depth of Cut (Decimal Inch): 0.1500
Product Information
- : 3607375
- Ansi Code: NG3125R
- Chip Breaker: None
- Coating Classification: PVD
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.0075
- Corner Radius (mm): 0.19
- Cutting Height (Decimal Inch): 0.1500
- Cutting Height (mm): 3.81
- Cutting Tool Application: Grooving; Turning
- Cutting Width (Decimal Inch): 0.1250
- Cutting Width (Inch): 1/8
- Cutting Width (mm): 3.180
- For Use With: Grooving; Turning
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Gage Diameter (Inch): 3/8
- Groove Width (mm): 3.18
- Hole Diameter (Decimal Inch): 0.0000
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Insert Hand: Right Hand
- Insert Height (Decimal Inch): 0.3440
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Seat Size: 3
- Insert Size: 3
- Insert Size Code: 3
- Insert Style: NG
- Insert Thickness: 8.74
- Insert Thickness (Decimal Inch): 0.3440
- Iso Code: NG3125R
- Lead Angle: 11.000
- Manufacturer Grade: TN6025
- Manufacturers Catalog Number: False
- Maximum Corner Radius (Decimal Inch): 0.0075
- Maximum Depth of Cut (Decimal Inch): 0.1500
- Maximum Depth of Cut (mm): 3.81
- Maximum Groove Width (mm): 3.18
- Minimum Corner Radius (Decimal Inch): 0.0100
- Minimum Groove Width (mm): 3.18
- Minimum Insert Width (mm): 4.98
- Multi-Use Tool: Yes
- Number of Cutting Edges: 2
- Overall Length (Decimal Inch): 0.8860
- Overall Length (mm): 22.5100
- Overall Width (Decimal Inch - 4 Decimals): 0.1960
- Overall Width (mm): 4.9800
- Primary Workpiece Material: Cast Iron; Stainless Steel; Super-alloys & Titanium; Steel
- Primary Workpiece Material Code: K; N; P; S
- Rake: Neutral
- Rake Angle: 0.000
- Relief Angle: 11
- Secondary Workpiece Material: Non-Ferrous Metal
- Secondary Workpiece Material Code: N
- Series: NG
- Single Or Double End: Single
- Style: Top Notch Grooving Insert
- Thickness (Inch): 11/32
- Type: Top Notch Grooving Insert
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
