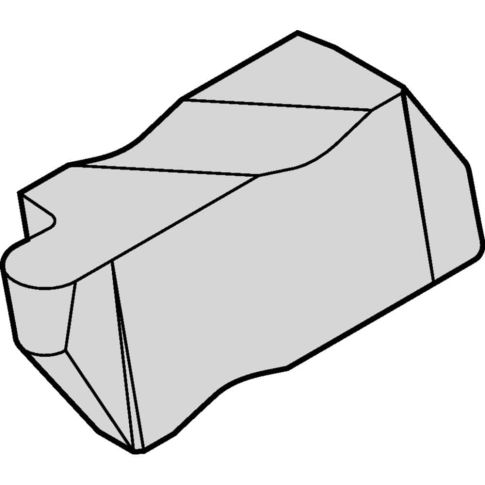

Grooving Inserts, Insert Style: NR , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.1575 , Cutting Width (mm): 4.000 , Insert Hand: Right Hand MPN:3607398
Grooving Inserts, Insert Style: NR , Insert Size Code: 3 , Cutting Width (Decimal Inch): 0.1575 , Cutting Width (mm): 4.000 , Insert Hand: Right Hand MPN:3607398 is available to buy in increments of 5
Grooving Inserts; Insert Style: NR ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.1575 ; Cutting Width (mm): 4.000 ; Insert Hand: Right Hand ; Maximum Depth of Cut (Decimal Inch): 0.1500
Our grooving inserts are designed to deliver smooth, precise cuts for a variety of applications across multiple industries, including automotive repair, construction, and woodworking. This particular insert is built with high-quality carbide material that ensures long-lasting durability and resistance to heat-related issues like melting or warping during use. With its right-handed cutting design and sharp, angled teeth, it can handle various material types with ease, making them suitable for cutting grooves, slots, or trenches depending on your requirements. They fit standard shank holders for easy mounting onto machinery, giving you maximum control over the cut.
- Grooving Inserts
- Insert Style: NR
- Insert Size Code: 3
- Cutting Width (Decimal Inch): 0.1575
- Cutting Width (mm): 4.000
- Insert Hand: Right Hand
- Maximum Depth of Cut (Decimal Inch): 0.1500
Product Information
- : 3607398
- Ansi Code: NR3M200R
- Chip Breaker: None
- Coating Classification: PVD
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.0787
- Corner Radius (Inch): 5/64
- Corner Radius (mm): 2.00
- Cutting Height (Decimal Inch): 0.1500
- Cutting Height (mm): 3.81
- Cutting Tool Application: Grooving; Turning
- Cutting Width (Decimal Inch): 0.1575
- Cutting Width (mm): 4.000
- For Use With: Grooving; Turning
- Full Radius: Yes
- Gage Diameter (Decimal Inch): 0.3750
- Gage Diameter (Inch): 3/8
- Groove Width (mm): 4.00
- Hole Diameter (Decimal Inch): 0.0000
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Insert Hand: Right Hand
- Insert Height (Decimal Inch): 0.3440
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Seat Size: 3
- Insert Size: 3
- Insert Size Code: 3
- Insert Style: NR
- Insert Thickness: 8.74
- Insert Thickness (Decimal Inch): 0.3440
- Iso Code: NR3M200R
- Lead Angle: 11.000
- Manufacturer Grade: TN6025
- Manufacturers Catalog Number: False
- Maximum Corner Radius (Decimal Inch): 0.0787
- Maximum Depth of Cut (Decimal Inch): 0.1500
- Maximum Depth of Cut (mm): 3.81
- Maximum Groove Width (mm): 4.00
- Minimum Groove Width (mm): 4.00
- Minimum Insert Width (mm): 4.98
- Multi-Use Tool: Yes
- Number of Cutting Edges: 2
- Overall Length (Decimal Inch): 0.8860
- Overall Length (mm): 22.5100
- Overall Width (Decimal Inch - 4 Decimals): 0.1960
- Overall Width (mm): 4.9800
- Primary Workpiece Material: Cast Iron; Stainless Steel; Super-alloys & Titanium; Steel
- Primary Workpiece Material Code: K; N; P; S
- Rake: Neutral
- Rake Angle: 0.000
- Relief Angle: 11
- Secondary Workpiece Material: Non-Ferrous Metal
- Secondary Workpiece Material Code: N
- Series: NR
- Single Or Double End: Single
- Style: Top Notch Grooving Insert
- Thickness (Inch): 11/32
- Type: Top Notch Grooving Insert
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
