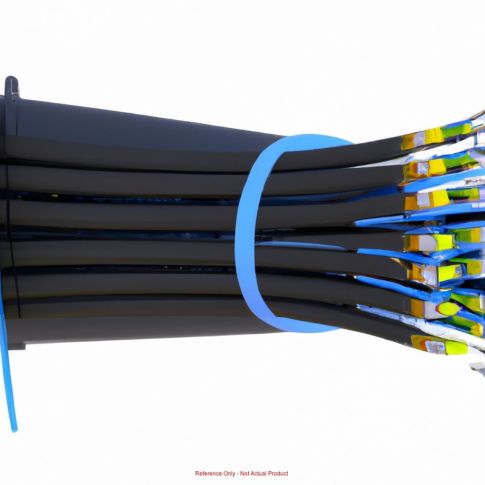

Category 6A Datacom Cable MPN:7143820

Technical Specifications

• Item - Data Cable Category Cable
• Category - Data Cable 6A
• Fire Rating - Data Cable Riser
• Shielded No
• Jacket Color White
• Spool Length 1,000 ft
• Package Type - Data Cable Spool
• Conductor Size - Data Cable 23 AWG
• Total Number of Conductors - Data Cable 8 (4 Pair)
• Jacket Material - Wire and Cable PVC
• NEC Article and Type NEC/CEC Type CMR (UL 1666) for Riser
• Outside Dia. 0.26 in
• Solid / Stranded Solid
• Frequency 500 MHz
• Operating Temp. Range -20 Degrees to 75 Degrees C
• Installation Temp. Range 0 Degrees to 60 Degrees C
• Bend Radius 1 1/16 in
• Pulling Force 40 lb
• Standards • ANSI/TIA 568.2-D• NEC/CEC Type CMR (UL 1666) for Riser• UL Listed CMR-LP 0.5A• UL 444• UL 4299• RoHS Compliant Directive 2011/65/EU• ANSI/TIA 862 (Building Automation)• ICEA S-116-732• ISO/IEC 11801 Ed. 2.0 (Class EA)

Manufacturer Details

• Manufacturer: Genspeed
• Condensed Mfg Number: 7143820
• MPN: 7143820

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8544491000
• GDS Category Name: Data/LAN Cables
• GDS Family Name: Data and Communication
• GDS Segment Name: Electrical
• UNSPSC: 26121609
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Electrical cable and accessories
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Network cable
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical wire and cable and harness
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
