Airless Line Striper Metal 5.5 HP MPN:17H458

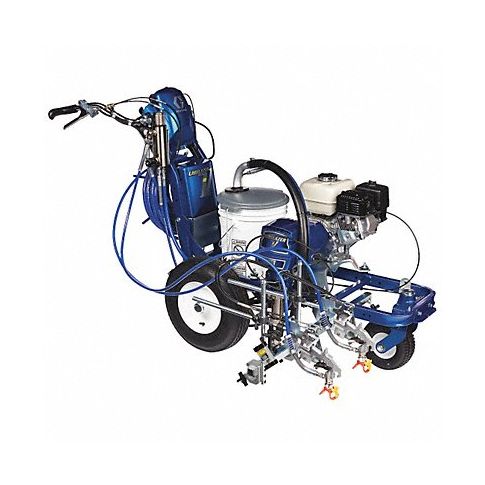

Introducing the Graco LineLazer V5900 automatic airless line striper, ideal for mid to heavy-duty striping needs. With a 5.5 HP fuel power source, this powerful striper comes equipped with innovative features such as green laser guidance system and LiveLook display for precise striping, Auto-Layout II System to speed up job completion, and EZ Align front wheel system for perfect tracking. The line striper uses a 1 or 2-gun paint gun option and is designed for parking lot striping or city street markings. The included EasyMark gun adjustment system ensures hassle-free gun setup while the DualComfort handle bar design offers ergonomic control. Get professional results with minimal effort using the Graco LineLazer V5900 airless line striper, making any striping job a breeze!
Top product features:
- Green laser guidance system
- LiveLook display
- Auto-Layout II System
Top product applications:
- Parking lot striping and maintenance
- Street lane marking in cities
- Warehouse floor designation
Technical Specifications
- Item Airless Line Striper
- Paint Sprayer Sub-Brand LineLazer V 5900 hp Automatic
- Power Source Fuel
- HP 5.5 hp
- Guns Supported 2
- Second Gun Outlet Yes
- Max. Tip Size 0.043 in
- Line Width 2 in to 12 in
- Flow Rate 1.6 gpm
- Max. Pressure 3,300 psi
- Body Material Metal
- Max. Hose Length 50 ft
- Engine Displacement 160 cc
- Application Pavement Line Striping for Parking Lots, Airports, Construction Zones, Intersections, Roads
- Net Weight 266 lb
- Overall Height 44 1/2 in
- Overall Length 68 3/4 in
- Overall Width 34 1/4 in
- Holds 5 gal
- Tip Size Included 0.029 in, 0.043 in
- Waterborne Compatible Yes
- For Use With Traffic Paint
- Features Adjustable Handle Bar, Display, Easy Gun Adjustment System for Solid Gun Control and Alignment, Green Laser Guidance, Program Guns to Start and Stop Automatically
- Includes (2) Guns, (4) Spray Tips, Filter
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Graco
- Condensed Mfg Number: 17H458
- MPN: 17H458
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8424209000
- GDS Category Name: Powered Striping and Marking Machines
- GDS Family Name: Paint Sprayers and Accessories
- GDS Segment Name: Paint Equipment and Supplies
- UNSPSC: 49161524
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Field sports equipment
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Soccer field marking equipment
- UNSPSC Family ID: 16
- UNSPSC Family Name: Field and court sports equipment
- UNSPSC Segment ID: 49
- UNSPSC Segment Name: Sports and Recreational Equipment and Supplies and Accessories
Shipping Details
- Not For Sale In: HI AK PR
