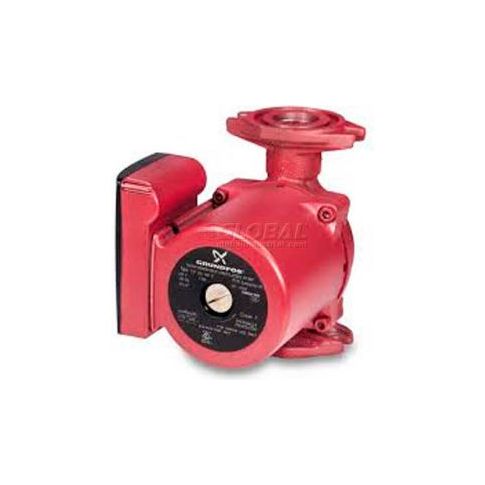

Grundfos UPS15-42F Circulator Water Pump 59896180 Cast Iron 220V 1/25 HP 3 Speeds 59896180
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-12664B10
Grundfos UPS15-42F Circulator Water Pump 59896180 Cast Iron 220V 1/25 HP 3 Speeds 59896180
This item is NOT returnable.
Grundfos UPS15-42F Circulator Water Pump 59896180, Cast Iron, 220V, 1/25 HP, 3 Speeds
Grundfos Series UP circulators are engineered to meet the demands of residential hot water and heating systems applications. The UPS 15-42 F works in a variety of closed loops applications variety of open and closed loop applications Features:
Grundfos Series UP circulators are engineered to meet the demands of residential hot water and heating systems applications. The UPS 15-42 F works in a variety of closed loops applications variety of open and closed loop applications Features:
- UPS Closed System 3-Speed Circulator Pump
- Automatic resetting thermal protection
- Multiple accessories for a variety of applications
- Whisper-quiet operation for sound sensitive installations
- Pump Connection: GF 15/26 Flange
- Made in the USA.
Product Specifications
- BRANDGrundfos
- LENGTH INCHES4
- WIDTH INCHES5-1/4
- HEIGHT INCHES6-1/2
- WEIGHT LBS4.40
- COLORRed
- HOUSING MATERIALCast Iron
- IMPELLER MATERIALComposite, PES
- PRESSURE PSI145
- VOLTAGE230
- MAXIMUM AMBIENT TEMPERATURE °F104 °F
- PHASE1
- HERTZ60
- HORSEPOWER1/25
- CONNECTION TYPECast Iron Flange
- APPROVALS OR CERTIFICATIONSUL, CSA
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBER59896180
- MODELUPS15-42F
- FLANGE STANDARDUSA Oval
- AMBIENT MAX AT 176°F LIQUID176 °F
- PORT TO PORT LENGTH INCHES6-1/2
- PIPE CONNECTION2 - Bolt Flange
- NUMBER OF POLES2
- CAPACITOR SIZE - RUN2 μF/400 V
- MAX. POWER INPUT92 W
- HEAD FEET0-15.4
- SYSTEM TYPEClosed
- THERMAL PROTECTIONInternal
- MOTOR PROTECTIONContact
- POS TERM BOX9H
- FLOW U.S. GPM0-17.6
- MAX. AMPS--
- MAX. WATTS--
- NUMBER OF SPEEDS3
- MAXIMUM FLUID TEMPERATURE °F230°F
- MINIMUM FLUID TEMPERATURE °F35.6°
Additional Information
- UPC: 05700391413896
- UNSPSC: 40101602
- Brand: Grundfos
- Color: Red
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 10.00
- Package Width: 8.00
- Package Height: 6.00
- Package Weight: 4.40
Product info last updated on November 7, 2024 11:51am UTC
Category: Pumps and Circulators
