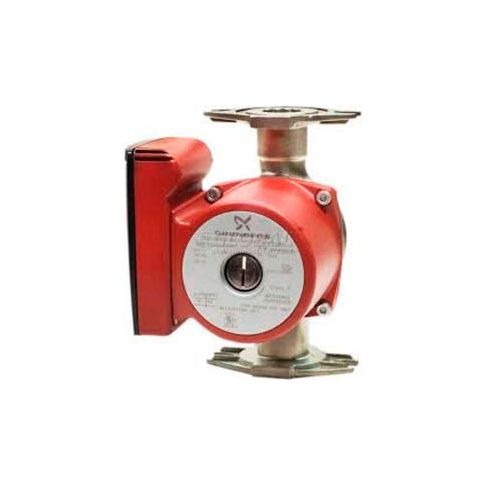

Grundfos UP15-29SF Circulator Water Pump 59896771 Stainless Steel 115V 1/12 HP 59896771
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-12628B10
Grundfos UP15-29SF Circulator Water Pump 59896771 Stainless Steel 115V 1/12 HP 59896771
This item is NOT returnable.
Grundfos UP15-29SF Circulator Water Pump 59896771, Stainless Steel, 115V, 1/12 HP
Choosing a stainless steel circulator ensures that you will always have the right pump - whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed Super Brute technology.
Features:
Choosing a stainless steel circulator ensures that you will always have the right pump - whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed Super Brute technology.
Features:
- Perfect for hot water recirculation applications
- Stainless steel - Protects against corrosive fluids
- Available in standard union or two-bolt flange
- 3-speed Super Brute technology available
- Timer and line-cord options available
- Integrated, removable check valve
- Quick connect terminals - for easy installation
- Highest starting torque in its class
- Industry leading three-year warranty
- Made in the USA.
Product Specifications
- BRANDGrundfos
- LENGTH INCHES4-1/8
- WIDTH INCHES5-1/2
- HEIGHT INCHES6-1/2
- WEIGHT LBS6.02
- COLORRed
- HOUSING MATERIALStainless Steel
- IMPELLER MATERIALComposite, PES
- PRESSURE PSI145
- VOLTAGE0.75
- MAXIMUM AMBIENT TEMPERATURE °F104 °F
- HERTZ60
- HORSEPOWER1/12
- CONNECTION TYPES.S. Flange
- APPROVALS OR CERTIFICATIONSUL, CSA
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBER59896771
- MODELUP15-29SF
- FLANGE STANDARDUSA Oval
- AMBIENT MAX AT 176°F LIQUID176 °F
- PORT TO PORT LENGTH INCHES6-1/2
- PIPE CONNECTION2 Bolt Flange
- NUMBER OF POLES2
- CAPACITOR SIZE - RUN10 μF/180 V
- MAX. POWER INPUT87 W
- HEAD FEET0-9.84
- SYSTEM TYPEClosed
- THERMAL PROTECTIONInternal
- MOTOR PROTECTIONContact
- POS TERM BOX9H
- FLOW U.S. GPM0-20.7
- MAX. AMPS0.75
- MAX. WATTS87
- NUMBER OF SPEEDS1
- MAXIMUM FLUID TEMPERATURE °F230°F
- MINIMUM FLUID TEMPERATURE °F35.6°
Additional Information
- UPC: 05700837414418
- UNSPSC: 40101602
- Brand: Grundfos
- Color: Red
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 10.00
- Package Width: 8.00
- Package Height: 6.00
- Package Weight: 6.02
Product info last updated on November 7, 2024 11:51am UTC
Category: Pumps and Circulators
