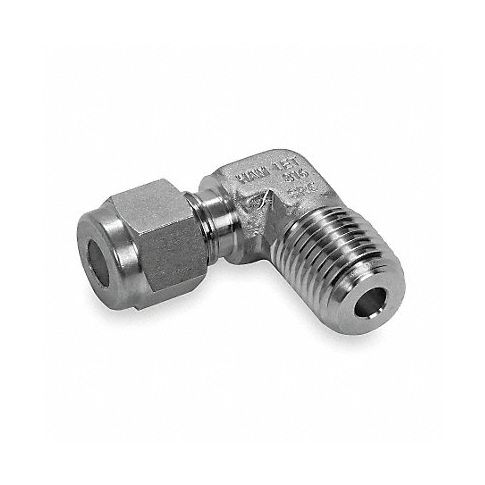

Elbow 90 316 SS LET-LOKxM 4mmx1/8In MPN:769L-SS-4MM X 1/8
Elbow 90 316 SS LET-LOKxM 4mmx1/8In
The Elbow 90 Degree, 316 Stainless Steel, Male Threaded End x Male Straight End, ANSI flanges are ideal for handling chemical and high-temperature applications due to its corrosion resistant properties. Its compact design is perfect for confined spaces or where multiple 90-degree bends are needed and ensures durability. This elbow can be used in applications like Chemical Plants, Food processing equipment or Oil and gas industries, as well as high-purity systems due to its excellent material grade of SS316 with male threaded ends for easy assembly on flanged piping.
316 Stainless Steel Metric Instrumentation Tube Fittings • Temp. range: -425° to 1200°FLET-LOK® premium fittings are suitable for use in high-pressure applications in heavy industrial environments, such as petrochemical, fluid power, nuclear, and electronic.Meet SAE, ASME, MIL-F-18866, and CE standards.
Technical Specifications
- Item Male Elbow, 90 Degrees
- Tube Fitting Material 316 Stainless Steel
- Fitting Connection Type LET-LOK(R) x MNPT
- Pipe Size - Pipe Fitting 1/8 in
- Tube Size 4mm
- Compression Thread Size 1/8-27
- Max. Pressure 5500 to 10,300 psi
- Hex Size 1/2 in
- Temp. Range -425 Degrees to 1200 Degrees F
- Standards ASME, ASTMA, CE, MIL-F-18866, SAE
Manufacturer Details
- Manufacturer: Ham-Let
- Condensed Mfg Number: 769LSS4MMX18
- MPN: 769L-SS-4MM X 1/8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IL
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307225000
- GDS Category Name: Compression Couplings Adapters Unions and Elbow
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:43am UTC
Category: Tube Fittings
