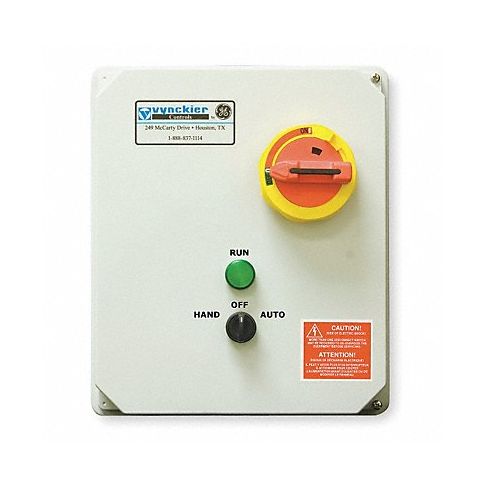

IEC Combo Str 6.3 - 10A 120V Coil 4X Enc MPN:VS-CE0610HPT

IEC Combination Motor Starters
• Short-circuit and motor overload protection 3-pole, 60/50 Hz 120VAC coil Self-protected, Type E 1NO/1NC auxiliary contact Hand/Off/Auto models have DIN rail-mount terminal blocks for external accessories 100VA transformer (where applicable) NEMA 4X
Adjustable motor circuit protector eliminates the need for heater elements (thermal units). Starters have visual short-circuit indicator and LED pilot light.
UL Listed, CSA Certified.

Technical Specifications

• Item IEC Combination Starter
• Overload Relay Amp Setting 6.3 to 10A
• Coil Volts 120V AC
• Amps AC 6.3 to 10
• Enclosure NEMA Rating 4X
• Operator Selector Switch
• Operator Function Hand/Off/Auto
• Short Circuit Protection Motor Circuit Protector
• Pilot Light Yes
• Control Transformer Yes
• Control Transformer Voltage 120V AC Secondary, 208, 240, 480V AC Primary
• Auxiliary Contact Form 1NO/1NC
• Hz 50/60
• HP @ 3 Phase - 240V 3 hp
• HP @ 3 Phase - 480V 5 hp
• Height 13.31 in
• Width 11.31 in
• Standards UL/CSA
