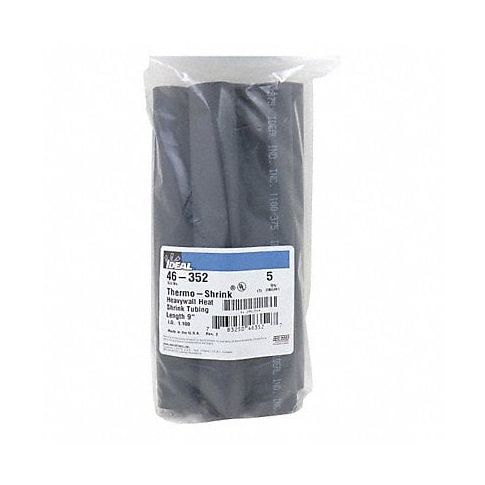

Shrink Tubing 9 in Blk 1.1 in ID PK5 MPN:46-352

Flame retardant and adhesive-lined heat shrink tubing resists combustion and minimizes the spread of flames. It's used where hot conditions are present, such as in engine compartments. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.

Technical Specifications

• Item Heat Shrink Tubing
• Tubing Wall Type Heavy Wall
• Material Cross-Linked Polyolefin with Adhesive
• Tubing Flexibility Semi Rigid
• Flame Retardant Yes
• Adhesive Lined Yes
• Shrink Ratio 3:1
• Use With Wire Size 1/0 AWG to 3/0 AWG
• I.D. Before Shrinking 1.1 in
• I.D. After Shrinking 0.35 in
• Wall Thickness After Shrinking 0.12 in
• Length 9 in
• Shrink Tubing Properties Solvent Resistant, UV Light Resistant
• Color Black
• Temp. Range -55 Degrees to 110 Degrees F
• Package Style Individual Pieces
• Min. Shrink Temp. 248 Degrees F
• Dielectric Strength 600 V
• Max. Temp. Rating 110 Degrees F
• Min. Temp. Rating -55 Degrees F
• Features Flame Retardant
• Standards ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5
