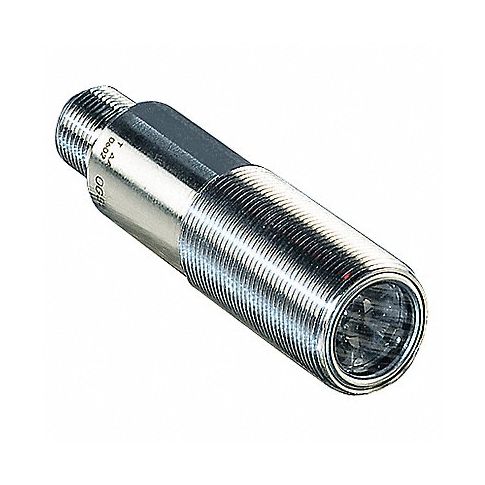

Photoelectric Sensor Cylinder Thru-Beam MPN:OGE500
Introducing the Photoelectric Sensor Cylinder Thru-Beam from Ifm, an ideal solution for a wide range of industrial automation applications such as conveying, material handling, packaging, and automotive assembly. This high-performing sensor boasts long sensing ranges and easy setup, making it incredibly user-friendly. With its compact housing and integrated microprocessor-based electronics, this product is built to withstand the rigors of heavy-duty use. The cylindrical photoelectric sensor receiver offers precise detection capabilities, while the through beam receiver sensing method ensures accuracy and reliability. Operating in selectable light on/dark on mode, the Photoelectric Sensor Cylinder Thru-Beam provides exceptional performance and versatility in a variety of applications. Trust Ifm for innovative solutions that improve efficiency and productivity.
Top product features:
- Long sensing ranges for detecting objects at greater distances
- Integrated microprocessor-based electronics for high performance and reliability
- Compact housing for easy installation in tight spaces
Top product applications:
- Industrial automation processes such as conveying, material handling, packaging, and automotive assembly
- Sorting and orienting tasks that require accurate detection and measurement of objects at varying distances
- Materials tracking and quality control in manufacturing environments where product visibility is critical
Technical Specifications
- Style - Cylindrical Photoelectric Sensor Cylindrical Photoelectric Sensor Receiver
- Item Cylindrical Photoelectric Sensor Receiver
- Sensing Method - Cylindrical Photoelectric Sensor Through Beam Receiver
- Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
- Diameter - Cylindrical Photoelectric Sensor 18 mm
- Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC
- Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector
- Circuit Type - Cylindrical Photoelectric Sensor PNP
- Max. Sensing Distance - Cylindrical Photoelectric Sensor 25.0 m
- Length - Cylindrical Photoelectric Sensor 72 mm
- Max. Load Current 200 mA
- Operating Frequency 1,000 Hz
- NEMA Rating Not Rated
- IP Rating 67
- Body Material 316L Stainless Steel/1.4404, PA, LCP, EPDM, TPU (Urethane)
- Light Source Red LED
- Features PMMA Lens, Reverse Polarity and Overload Protection
- Operating Temp. Range -25 Degrees to 80 Degrees C
- Standards CE Approval, CUL Listed, UL Listed
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: OGE500
- MPN: OGE500
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Cylindrical Photoelectric Sensors
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121528
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 28
- UNSPSC Commodity Name: Photoelectric sensors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
