IKO Needle Roller Cage Assembly, 18mm Bore, 22mm OD, 10mm Width, Steel Cage Material

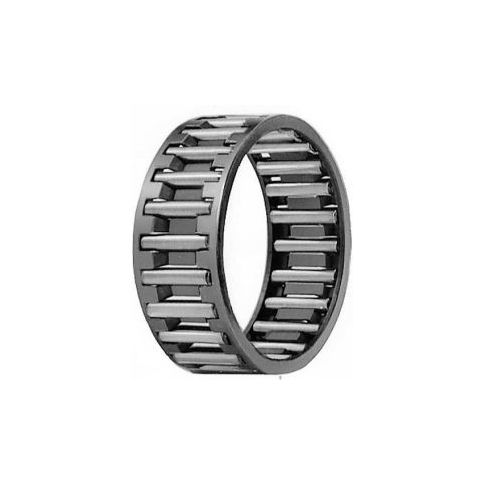

IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2 mRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2 mRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
Product Specifications
- BRANDIKO
- DYNAMIC LOAD RATING (N)7500
- STATIC LOAD RATING (N)9560
- MAX SPEED / OIL (RPM)30000
- TEMPERATURE RANGE °C-20 to +120
- CAGE MATERIALSteel
- OD (Ew) (mm)22
- BORE (Fw) mm/inch18
- WIDTH (Bc) (mm)10
- TOLERANCE ROLLER DIAMETER (mm)+0 / -0.003
- TOLERANCE CAGE WIDTH (mm)-0.20 / -0.55
- SERIESKT
- MANUFACTURERS PART NUMBERKT182210C3
- MAX SPEED / GREASE (RPM)15000
- SHAFT DIAMETER MM+0 / -0.008
- BORE (mm)+0.020 / +0.007
Additional Information
- UNSPSC: 31171512
- Brand: IKO International
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 0.94
- Package Width: 0.94
- Package Height: 0.47
- Package Weight: 0.01
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
