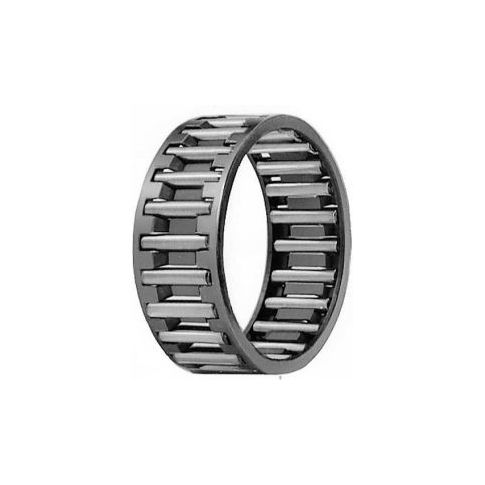

IKO Needle Roller Cage Assembly 14mm Bore 19mm OD 18mm W Steel Cage Material KT141918C3

Discount: See in Cart
Free Shipping
In Stock
Brand: Iko
Part #: KT141918C3
SKU
281-73355B11
70.74 for Minimum Order Qty of 6
$11.79 Each
IKO Needle Roller Cage Assembly 14mm Bore 19mm OD 18mm W Steel Cage Material KT141918C3
IKO Needle Roller Cage Assembly, 14mm Bore, 19mm OD, 18mm Width, Steel Cage Material

IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2 mRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.

Product Specifications

  • BRANDIKO
  • DYNAMIC LOAD RATING (N)12400
  • STATIC LOAD RATING (N)14700
  • MAX SPEED / OIL (RPM)35000
  • TEMPERATURE RANGE °C-20 to +120
  • CAGE MATERIALSteel
  • BORE (Fw) mm/inch14
  • OD (Ew) (mm)19
  • WIDTH (Bc) (mm)18
  • TOLERANCE ROLLER DIAMETER (mm)+0 / -0.003
  • TOLERANCE CAGE WIDTH (mm)-0.20 / -0.55
  • SERIESKT
  • MANUFACTURERS PART NUMBERKT141918C3
  • MAX SPEED / GREASE (RPM)17500
  • SHAFT DIAMETER MM+0 / -0.008
  • BORE (mm)+0.020 / +0.007


Additional Information
  • UNSPSC: 31171512
  • Brand: IKO International
  • Package Quantity: 1
  • Country of Origin: JP
  • FOB Origin: NJ
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: Yes
  • Package Length: 0.83
  • Package Width: 0.83
  • Package Height: 0.79
  • Package Weight: 0.02
