MAG-MATE® DynamicLift™ DL0334 Manual Lifting Magnet 334 Lbs. Capacity DL0334

Discount: See in Cart
Free Shipping
In Stock
Brand: Industrial Magnetics
Part #: DL0334
UPC: 00682241296703
SKU
281-63903B22
$969.99
MAG-MATE® DynamicLift™ DL0334 Manual Lifting Magnet 334 Lbs. Capacity DL0334

This item is NOT returnable.

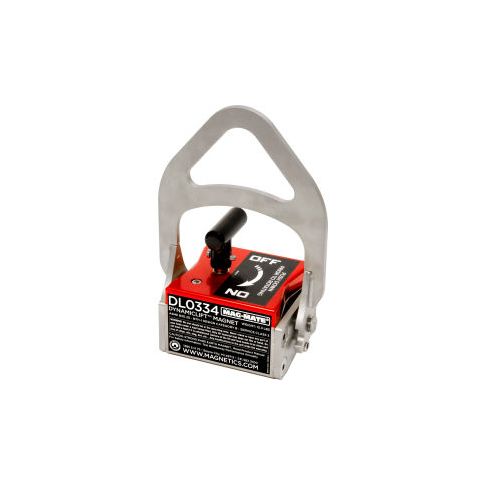

MAG-MATE® DynamicLift™ DL0334 Manual Lifting Magnet 334 Lbs. Capacity

These lightweight switchable Rare Earth permanent lift magnets can be used on flat or round (pipe) surfaces. Contains an internal On/Off release device that does not contact or damage the surface of the part. Top mounted rotating On/Off actuation handle allows this magnet to be used in tight spots like C-Chanel, bins or other narrow spots. The lift lug can be place in two positions, one for horizontal liftig of flat or round load or the other position for vertically for lifting flats.
Features:
  • On/Off Permanent Rare Earth Magnet
  • Handle Locks in the On Position
  • Lifts Flat or Round Loads
  • Easy Internal Manual Release Does Not Contact the Load
  • Large swivel lift lug
  • Heat Resistant Up To 180 F (82 C)
  • 3:1 Design Factor
  • Conforms To ASME B30.20 Standard
  • Magnet Size: 4-1/4"L x 4"W x 3"H
  • 2 Poles

Product Specifications

  • LENGTH INCHES6-1/2
  • WIDTH INCHES4
  • HEIGHT INCHES9-1/4
  • CAPACITY LBS334
  • COLOR FINISHRed
  • APPROVAL/REGULATIONSASME B30.20 BTH-1 Design Category B Service Class 3
  • ASSEMBLYAssembled
  • BAIL OPENING INCHES1/4 x 2-1/4 x 4
  • BASE DIAMETER OR DIMENSION INCHES3 x 2-1/2
  • BRANDMag-Mate®
  • CONSTRUCTIONSteel/Rare Earth
  • HANDLE LENGTH INCHES2-1/2
  • LIMITED WARRANTY1 Year
  • MANUFACTURERS PART NUMBERDL0334
  • MIN. THICKNESS INCHES1/4"
  • PACKAGE QUANTITY1
  • STYLEManual Lifting Magnet
  • WEIGHT LBS13.3
  • MAGNET SIZE3" x 2-1/2" x 2-3/4"


Additional Information
  • UPC: 682241296703
  • UNSPSC: 24101658
  • Color: Red
  • Package Quantity: 1
  • Country of Origin: CN
  • FOB Origin: MI
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Length: 6.50
  • Package Width: 4.00
  • Package Height: 9.25
  • Package Weight: 14.50
