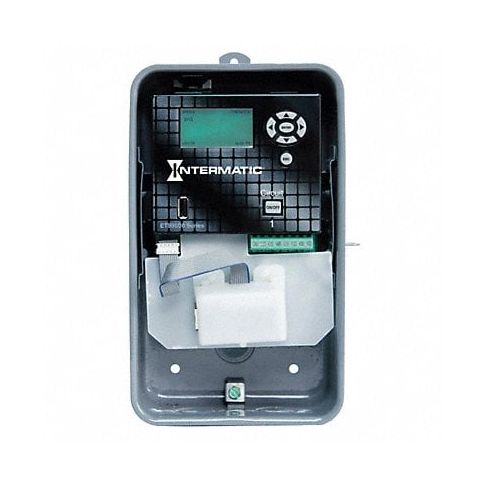

Electronic Timer Astro 365 Days SPDT MPN:ET90115CRE
Free Shipping
In Stock
The Intermatic Electronic Timer Astro 365 Days SPDT is an innovative time switch designed for convenient operation of lights or appliances on a schedule. With a simple programming system, you can set it up to turn on/off daily, weekdays only, weekends only, or in specific increments like hours and minutes. It's ideal for use in multiple settings such as homes, offices, or outdoors where manual switching is cumbersome. The timer offers the versatility of single pole double throw (SPDT) contacts with a 120-277V AC voltage rating and a low current consumption, making it perfect to control electrical loads with energy-efficient bulbs and devices. Backed by the quality craftsmanship of Intermatic, this timer will bring simplicity to your daily routine while offering great value for money.
Top product features:
- Daily and weekly programming options
- SPDT contacts for versatile control of electrical loads
- Low current consumption suitable for use with energy-efficient devices
Top product applications:
- Lights control in homes for vacation or work schedule
- Shop lights or equipment timers for businesses to save energy and maintenance costs
- Security system integration for automated locking/unlocking of doors, alarms, or cameras
Technical Specifications
- Item Electronic Timer
- Operation Mode Astro 365 Days
- Number of Channels 1
- Contact Form SPDT
- Voltage 120 to 277V AC
- Amps 30 A
- HP @ 120V NC: 1/4, NO: 1
- HP @ 240V NC: 1/2, NO: 2
- Events Available - Electronic Timer 4,000
- Available Actions - Electronic Timer Cycle, On/Off, Pulse
- Event Allocation - Electronic Timer 1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event
- Pulse Duration 1 sec to 24 hr
- Enclosure Metal
- Mounting Snap-In
- Number of Poles 1
- Min. Time Setting 1 sec
- Max. Time Setting 365 day
- NEMA Rating 3R
- Color Gray
- Backup Device Capacitor
- Backup Time 100 hr
- Operating Temp. -40 Degrees to 120 Degrees F
- Display Height 1 in
- Display Width 2 in
- Height 9 1/2 in
- Depth 3 1/2 in
- Width 5 3/4 in
- Description/Special Features Ethernet Module, Copy Programming To Other Time Switches For Backup Purposes Via USB
- Standards California Title 24 Complaint, cCSAus Listed
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: ET90115CRE
- MPN: ET90115CRE
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9106905520
- GDS Category Name: Electronic Timers
- GDS Family Name: Timers
- GDS Segment Name: Electrical
- UNSPSC: 39121523
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 23
- UNSPSC Commodity Name: Timer controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Timers
