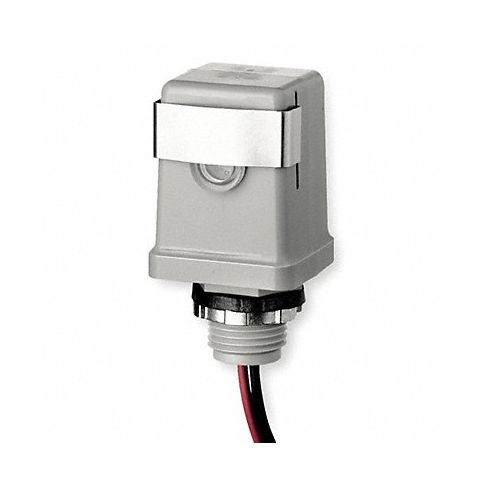

Photocontrol Stem 208 to 277VAC
Introducing the Intermatic Photocontrol Stem 208 to 277VAC, the ideal solution for dusk-to-dawn lighting control of your outdoor spaces. Its slide adjustment feature allows you to easily customize light levels to suit your needs, while its weather gasket and locking nut ensure that it stays secure in harsh conditions. The Photocontrol Stem is perfect for street lights, parking lot lights, billboard lights, and security lights, with a maximum wattage of 4,150 and max incandescent amps of 15.0. Take control of your lighting with this reliable and efficient photo control from Intermatic.
Top product features:
- Light level slide adjustment Allows users to easily customize light levels.
- Weather gasket and locking nut Ensures secure installation in harsh conditions.
- Dusk-to-dawn control Automatically turns on lights at dusk and off at dawn for effortless operation.
Top product applications:
- Street lighting Illuminates roadways and walkways for safety.
- Parking lot lighting Ensures security and visibility in parking areas.
- Security lighting Deters crime and increases safety on property or grounds.
This photo control is designed to provide "dusk-to-dawn" control over street lighting, parking lot lighting, billboard lighting, and security lighting. It features a light level slide adjustment and a 1/2" threaded stem. It also includes a weather gasket and locking nut.
Technical Specifications
- Item Photocontrol
- Mounting Stem
- Voltage 208 to 277V AC
- Max. Wattage 4,150
- Max. Incandescent Amps 15.0
- Max. Ballast Amps 8.3
- Foot Candles On 1.0 to 5.0
- Foot Candles Off 3 to 15
- Color White/Gray
- Temp. Range -40 Degrees to 158 Degrees F
- Length 2 5/16 in
- Width 1 9/16 in
- Depth 1 9/16 in
- Enclosure Type Raintight
- Contact Form SPST
- Housing Material Polypropylene
- Setting Dusk to Dawn
- For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
- Description/Special Features 1/2 in Threaded with Light Level Shield with Built in Delay
- Standards CSA, UL
- Includes Locking Nut, Washer Gasket
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: K4123C
- MPN: K4123C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Lighting Photocontrols
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121524
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Photocontrols
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
