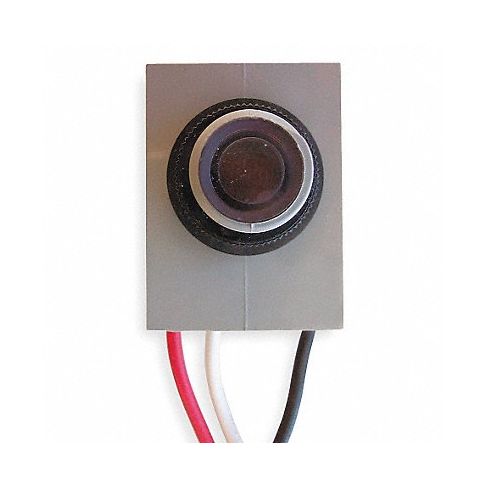

Photocontrol Fixed 208 to 277VAC MPN:K4023C

This photo control is designed to provide automatic switching for outdoor lighting loads. It features a built-in delay to keep controlled lighting from switching off due to ambient light. It also features a thermal design with high-impact polycarbonate housing, a metal film resistor, bi-metal blades, and snap-action contact blades.

Technical Specifications

• Item Photocontrol
• Mounting Fixed
• Voltage 208 to 277V AC
• Max. Wattage 4,150
• Max. Incandescent Amps 15.0
• Max. Ballast Amps 8.3
• Foot Candles On 1.0 to 5.0
• Foot Candles Off 3 to 15
• Color Gray
• Temp. Range -40 Degrees to 158 Degrees F
• Length 1 13/16 in
• Width 1 5/16 in
• Depth 13/16 in
• Enclosure Type Raintight
• Contact Form SPST
• Housing Material Polycarbonate
• Setting Dusk to Dawn
• For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
• Description/Special Features Heavy Duty Wired-in with Built in Delay
• Standards CSA, UL
• Includes Locking Nut, Washer Gasket
• Manufacturers Warranty Length 2 yr

Manufacturer Details

• Manufacturer: Intermatic
• Condensed Mfg Number: K4023C
• MPN: K4023C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509065
• GDS Category Name: Lighting Photocontrols
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121524
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 24
• UNSPSC Commodity Name: Photocontrols
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
