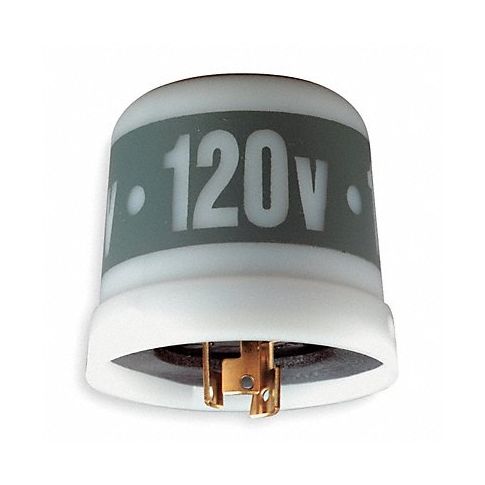

Photocontrol Locking 120 to 277VAC MPN:LC4536C
Free Shipping
In Stock
Introducing Photocontrol Locking 120 to 277VAC from Intermatic - the ultimate solution for light control in outdoor settings! With a built-in delay feature, it prevents false cycling due to car headlights and lightning. The thermal photo control is perfect for commercial use as it is made of durable and weather-resistant materials, including a sonic-welded polycarbonate case and lens. Easily mount this product on any surface with its locking mechanism, providing you with reliable control over outdoor lighting. Whether you're looking to save energy or maintain security, the Photocontrol Locking 120 to 277VAC has got you covered. With a max wattage of 2,300 and max incandescent amps of 15.0, this product is perfect for all your light control needs.
Top product features:
- Locking mechanism for easy mounting
- Built-in delay to prevent false cycling due to car headlights and lightning
- Durable and weather-resistant materials including a sonic-welded polycarbonate case and lens.
Top product applications:
- Outdoor lighting control in commercial settings
- Security lighting management in parking lots or entrances
- Energy-saving solution for public spaces or street lights
Technical Specifications
- Item Photocontrol
- Mounting Locking
- Voltage 120 to 277V AC
- Max. Wattage 2,300
- Max. Incandescent Amps 15.0
- Max. Ballast Amps 8.3
- Foot Candles On 0.5
- Foot Candles Off 15
- Color White/Gray
- Temp. Range -40 Degrees to 158 Degrees F
- Length 2 3/4 in
- Width 3 in
- Depth 3 in
- Enclosure Type Raintight
- Contact Form SPST
- Housing Material Polypropylene
- Setting Dusk to Dawn
- For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
- Description/Special Features Built in Delay
- Standards CSA, UL
- Includes Locking Nut, Washer Gasket
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: LC4536C
- MPN: LC4536C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Lighting Photocontrols
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121524
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Photocontrols
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
