Photocontrol Fixed 120VAC MPN:K4021C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-6P005

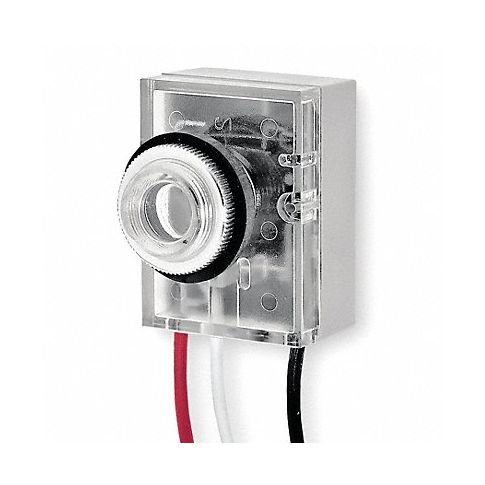

Photocontrol Fixed 120VAC
The Photocontrol Fixed 120VAC from Intermatic is the perfect solution for controlling your outdoor lighting automatically with ease. Its built-in delay ensures that controlled lights don't switch off due to ambient light, while its high-impact polycarbonate housing, metal film resistor, bi-metal blades, and snap-action contact blades provide durability and reliable performance. This photo control is designed for use in outdoor applications up to 1,800 watts or 15 incandescent amps, making it ideal for pathway lighting, yard illumination, and more. With its fixed installation and user-friendly design, the Photocontrol Fixed 120VAC is an essential addition to any outdoor living space.
Top product features:
- Built-in delay to prevent switching off due to ambient light
- High-impact polycarbonate housing and bi-metal blades for durability
- Snap-action contact blades for user-friendly performance
Top product applications:
- Outdoor lighting control for pathways and yards
- Automatic light switching to prevent battery drain on backup power systems
- Timed lighting scheduling for security and safety purposes
This photo control is designed to provide automatic switching for outdoor lighting loads. It features a built-in delay to keep controlled lighting from switching off due to ambient light. It also features a thermal design with high-impact polycarbonate housing, a metal film resistor, bi-metal blades, and snap-action contact blades.
Technical Specifications
- Item Photocontrol
- Mounting Fixed
- Voltage 120V AC
- Max. Wattage 1,800
- Max. Incandescent Amps 15.0
- Max. Ballast Amps 8.3
- Foot Candles On 1.0 to 5.0
- Foot Candles Off 3 to 15
- Color Translucent
- Temp. Range -40 Degrees to 158 Degrees F
- Length 1 13/16 in
- Width 1 5/16 in
- Depth 13/16 in
- Enclosure Type Raintight
- Contact Form SPST
- Housing Material Polycarbonate
- Setting Dusk to Dawn
- For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
- Description/Special Features Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, Mount In Approved FS Box or Fixture with 11/16 in or 3/4 in dia Hole
- Standards CSA, UL
- Includes Waterproof Wall Plate with Neoprene Gasket
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: K4021C
- MPN: K4021C
