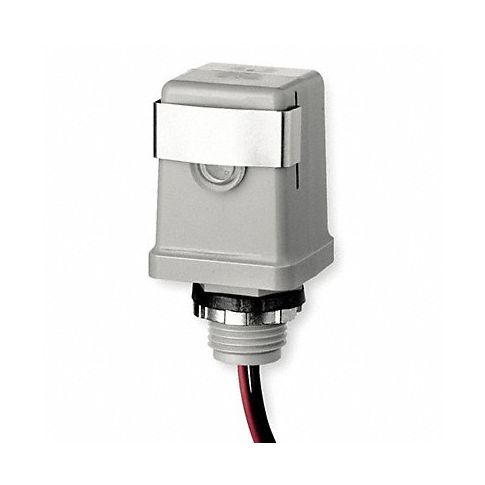

Photocntrl 1/2In Male Pipe Thread 120VAC MPN:K4121C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-6P007
Photocntrl 1/2In Male Pipe Thread 120VAC
The Intermatic Photocntrl is the ideal solution for outdoor lighting automation. Featuring a built-in delay, this photo control ensures that your lights won't switch off due to ambient light, providing you with consistent illumination and saving energy in the process. With its thermal design, high-impact polycarbonate housing, metal film resistor, bi-metal blades, and snap-action contact blades, this product is built to last, even in harsh outdoor conditions. With applications ranging from security systems and landscaping to pathway illumination and general outdoor lighting, the Intermatic Photocntrl is an all-in-one solution for anyone looking to streamline their outdoor lighting needs.
Top product features:
- Built-in delay: Ensures that lights won't switch off due to ambient light.
- Thermal design: Built to last even in harsh outdoor conditions.
- Snap-action contact blades: Provides consistent illumination and saves energy.
Top product applications:
- Security lighting in outdoor areas
- Outdoor floodlights for pathways and gardens
- Accent lighting on landscapes and architecture
This photo control is designed to provide automatic switching for outdoor lighting loads. It features a built-in delay to keep controlled lighting from switching off due to ambient light. It also features a thermal design with high-impact polycarbonate housing, a metal film resistor, bi-metal blades, and snap-action contact blades.
Technical Specifications
- Item Photocontrol
- Mounting 1/2 in Male Pipe Thread
- Voltage 120V AC
- Max. Wattage 1,800
- Max. Incandescent Amps 15.0
- Max. Ballast Amps 8.3
- Foot Candles On 1.0 to 5.0
- Foot Candles Off 3 to 15
- Color White/Gray
- Temp. Range -40 Degrees to 158 Degrees F
- Length 2 5/16 in
- Width 1 9/16 in
- Depth 1 9/16 in
- Enclosure Type Raintight
- Contact Form SPST
- Housing Material Polycarbonate
- Setting Dusk to Dawn
- For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
- Description/Special Features Fixed Type with Built in Relay
- Standards CSA, UL
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: K4121C
- MPN: K4121C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Lighting Photocontrols
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121524
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Photocontrols
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000P0FPVO, B01LZP4HU9
Product info last updated on November 26, 2024 5:30am UTC Category: Switches
