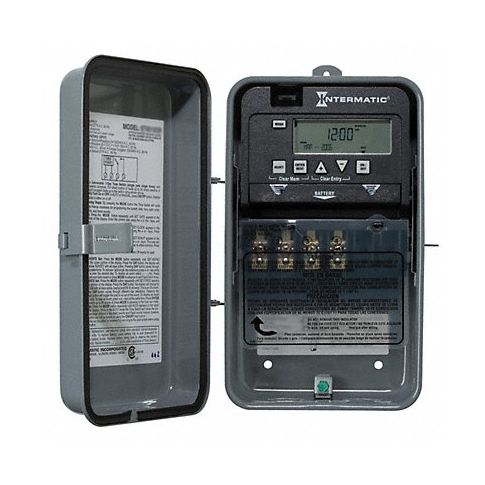

Electronic Timer 24 hr SPST MPN:ET1125C
Free Shipping
In Stock
Introducing Intermatic's Electronic Timer 24 hr SPST - perfect for managing the operations of your HVAC equipment, indoor and outdoor lighting, and other energy-consuming devices! This timer features user-friendly slide switches and push buttons that allow you to effortlessly set up programmable timings without any manual interference. The backup feature ensures the maintenance of program and time even when power is lost. The locking steel enclosures make it tamper-resistant, keeping your settings safe from unauthorized access. This durable electronic timer brings immense convenience to your everyday life while effectively reducing energy consumption. Use it in various applications like lawn sprinklers, appliances, lighting systems, or even heating and cooling controls. The versatile product allows you to save costs on electricity bills without compromising comfort. Get the Intermatic Electronic Timer 24 hr SPST today to simplify your daily schedule while making a positive impact on our environment!
Top product features:
- Easy programming with slide switches and push buttons
- Locking steel enclosures for tamper resistance
- Designed for managing HVAC equipment, lighting, and other energy-consuming devices
Top product applications:
- Manage HVAC equipment usage during off-peak hours to reduce energy bills
- Control outdoor lighting timings for safety and security purposes
- Set up automatic indoor lights for added convenience and energy savings
Technical Specifications
- Item Electronic Timer
- Operation Mode 24 hr
- Number of Channels 2
- Contact Form SPST
- Voltage 120/208 to 240/277V AC
- Amps 30 A
- HP @ 120V 1
- HP @ 240V 2
- Events Available - Electronic Timer 28
- Available Actions - Electronic Timer On/Off, Pulse
- Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
- Pulse Duration 2 sec
- Enclosure Metal
- Mounting Surface
- Number of Poles 1
- Min. Time Setting 1 min
- Max. Time Setting 24 hr
- NEMA Rating 1
- Color Gray
- Backup Device (2) AAA Batteries
- Backup Time 3 yr
- Operating Temp. -40 Degrees to 155 Degrees F
- Display Height 1 in
- Display Width 2 3/4 in
- Height 7 3/4 in
- Depth 5 in
- Width 3 in
- Description/Special Features Non-volatile EEPROM memory protects programming indefinitely; Temporary override or permanent manual override available via push buttons
- Standards California Title 24 Complaint, cCSAul Listed
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: ET1125C
- MPN: ET1125C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9107008000
- GDS Category Name: Electronic Timers
- GDS Family Name: Timers
- GDS Segment Name: Electrical
- UNSPSC: 39121523
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 23
- UNSPSC Commodity Name: Timer controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
