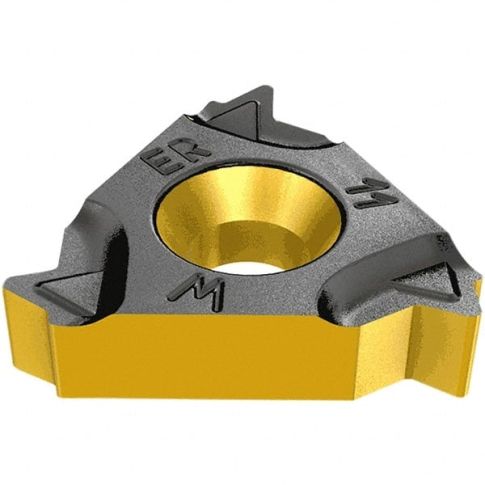

Laydown Threading Insert: 16EL 11.5 NPT IC908, Solid Carbide MPN:5902270
Laydown Threading Insert: 16EL 11.5 NPT IC908, Solid Carbide MPN:5902270 is available to buy in increments of 5
Laydown Threading Insert: 16EL 11.5 NPT IC908, Solid Carbide
Laydown Threading Insert: 16EL 11.5 NPT IC908, Solid Carbide TiAlN Finish, Left Hand External NPT Thread, 11.5 TPI, 3/8" Inscribed Circle, 0.143" Thick
Product Information
- : 5902270
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0040
- Corner Radius (mm): 0.10
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16EL
- Iso Code: ISO 13399
- Manufacturer Grade: IC908
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: ISCARTHREAD
- Standards: ISO 13399
- Thickness (Decimal Inch - 4 Decimals): 0.1430
- Thread Standard: NPT
- Thread Type: External
- Threads Per Inch: 11.5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.30
- Prohibited States: AK,HI,PR
Product info last updated on July 2, 2024 11:06am UTC
Category: Threading and Thread Mill Inserts
