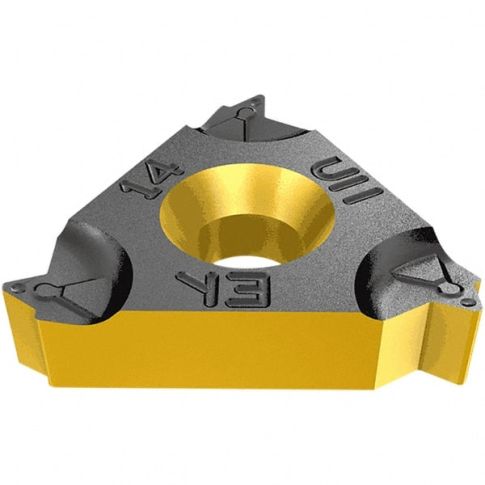

Laydown Threading Insert: 16ERB18UN IC908, Solid Carbide MPN:5902806
Laydown Threading Insert: 16ERB18UN IC908, Solid Carbide MPN:5902806 is available to buy in increments of 5
Laydown Threading Insert: 16ERB18UN IC908, Solid Carbide
Laydown Threading Insert: 16ERB18UN IC908, Solid Carbide TiAlN Finish, Right Hand External UN Thread, 18 TPI, 3/8" Inscribed Circle, 0.143" Thick
Product Information
- : 5902806
- Chipbreaker: B
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0067
- Corner Radius (mm): 0.17
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16ERB
- Iso Code: ISO 13399
- Manufacturer Grade: IC908
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: ISCARTHREAD
- Standards: ISO 13399
- Thickness (Decimal Inch - 4 Decimals): 0.1430
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 18
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.08
- Prohibited States: AK,HI,PR
Product info last updated on July 2, 2024 11:06am UTC
Category: Threading and Thread Mill Inserts
