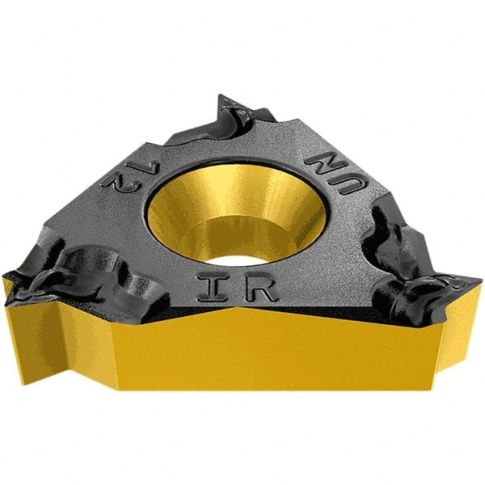

Laydown Threading Insert: 16IRB24UN IC908, Solid Carbide MPN:5902821
Laydown Threading Insert: 16IRB24UN IC908, Solid Carbide MPN:5902821 is available to buy in increments of 5
Laydown Threading Insert: 16IRB24UN IC908, Solid Carbide
Laydown Threading Insert: 16IRB24UN IC908, Solid Carbide TiAlN Finish, Right Hand Internal UN Thread, 24 TPI, 3/8" Inscribed Circle, 0.143" Thick
Product Information
- : 5902821
- Chipbreaker: B
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0020
- Corner Radius (mm): 0.05
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16IRB
- Iso Code: ISO 13399
- Manufacturer Grade: IC908
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: ISCARTHREAD
- Standards: ISO 13399
- Thickness (Decimal Inch - 4 Decimals): 0.1430
- Thread Standard: UN
- Thread Type: Internal
- Threads Per Inch: 24
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.64
- Prohibited States: AK,HI,PR
Product info last updated on December 27, 2024 5:30am UTC
Category: Threading and Thread Mill Inserts
