Threading Insert: TIP2P20UN IC08, Carbide MPN:6403454
Threading Insert: TIP2P20UN IC08, Carbide MPN:6403454 is available to buy in increments of 10

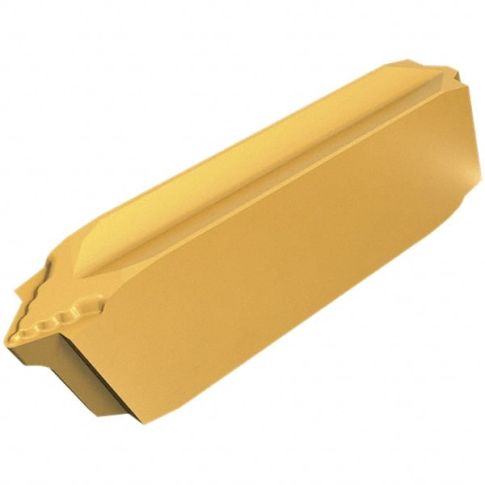

Threading Insert: TIP2P20UN IC08, Carbide
- Threading Insert: TIP2P20UN IC08, Carbide Uncoated Finish, 20 TPI, Series Cut-Grip
- IscarThread
Product Information
- : 6403454
- Coating Process: Uncoated
- Corner Radius (Decimal Inch): 0.0060
- Corner Radius (mm): 0.16
- External Pitch: 20 TPI
- Finish Coating: Uncoated
- Included Angle: 60
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 2P20
- Insert Style: TIP
- Iso Code: TIP 2P20-UN
- Manufacturer Grade: IC08
- Material Grade: Fine Grain
- Maximum Corner Radius (Decimal Inch): 0.0060
- Maximum Corner Radius (mm): 0.16
- Series: Cut-Grip; IscarThread
- Standards: ISO 13399
- Thread Standard: UNC; UNEF; UNF
- Thread Type: External
- Width of Cutting Tip (Decimal Inch): 0.0940
- Width of Cutting Tip (mm): 2.40
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: CH, Switzerland
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:47am UTC
Category: Threading and Thread Mill Inserts
