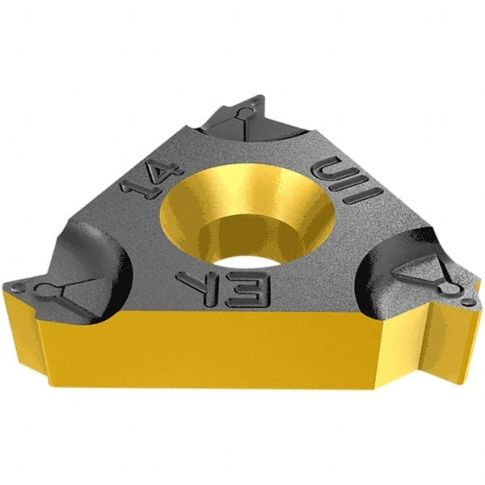

Laydown Threading Insert: 16ERM 8 UN IC250, Solid Carbide MPN:5920269
Laydown Threading Insert: 16ERM 8 UN IC250, Solid Carbide MPN:5920269 is available to buy in increments of 5
Laydown Threading Insert: 16ERM 8 UN IC250, Solid Carbide
Laydown Threading Insert: 16ERM 8 UN IC250, Solid Carbide TiCN/TiN Finish, Right Hand External UN Thread, 8 TPI, 3/8" Inscribed Circle, 0.143" Thick
Product Information
- : 5920269
- Chipbreaker: M
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0160
- Corner Radius (mm): 0.41
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16ERM
- Iso Code: ISO 13399
- Manufacturer Grade: IC250
- Primary Workpiece Material: Cast Iron; Stainless Steel; Steel
- Primary Workpiece Material Code: K; M; P
- Series: ISCARTHREAD
- Standards: ISO 13399
- Thickness (Decimal Inch - 4 Decimals): 0.1430
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:39am UTC
Category: Threading and Thread Mill Inserts
