Grooving Insert: GIF590020F IC808, Solid Carbide MPN:6404351
Grooving Insert: GIF590020F IC808, Solid Carbide MPN:6404351 is available to buy in increments of 10

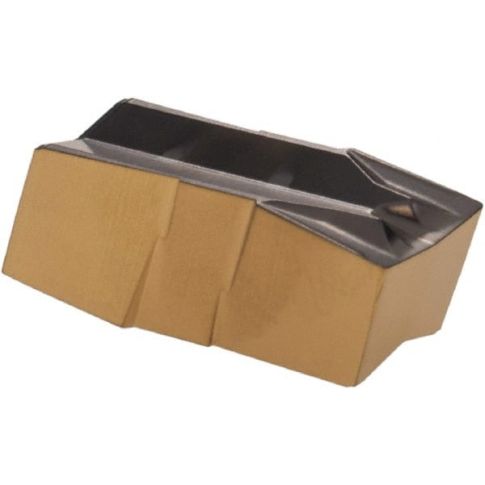

Grooving Insert: GIF590020F IC808, Solid Carbide
Grooving Insert: GIF590020F IC808, Solid Carbide AlTiN, TiAlN & TiN Finish, Neutral, 5.9 mm Cutting Width, 13 mm Max Depth, Series Cut-Grip
Product Information
- : 6404351
- Chip Breaker: F
- Coating Process: PVD
- Coating/Finish: AlTiN; TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0079
- Corner Radius (mm): 0.20
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.2323
- Cutting Width (mm): 5.90
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 590020
- Insert Size Code: 590020
- Insert Style: GIF
- Iso Code: ISO 13399
- Manufacturer Grade: IC808
- Material Grade: Submicron
- Maximum Depth of Cut (Decimal Inch): 0.5118
- Maximum Depth of Cut (mm): 13.00
- Maximum Depth of Cut Range (Decimal Inch): 0.3000 to 1.0000
- Maximum Depth of Cut Range (mm): 10.00 to 20.00
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.6024
- Overall Length (mm): 15.30
- Overall Width (Decimal Inch - 4 Decimals): 0.2323
- Overall Width (mm): 5.90
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; P; S
- Rake: Positive
- Rake Angle: 7.00
- Series: Cut Grip
- Single Or Double End: Double
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:07am UTC
Category: Grooving Inserts
