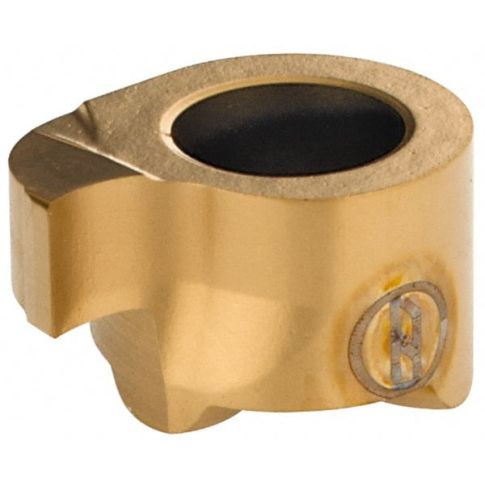

Grooving Insert: GIQR11318020 IC528, Solid Carbide MPN:6403923
Grooving Insert: GIQR11318020 IC528, Solid Carbide MPN:6403923 is available to buy in increments of 10
Grooving Insert: GIQR11318020 IC528, Solid Carbide
Grooving Insert: GIQR11318020 IC528, Solid Carbide TiCN & TiN Finish, 3.18 mm Cutting Width, 1.27 mm Max Depth, Series ChamGroove
Product Information
- : 6403923
- Coating Process: PVD
- Coating/Finish: TiCN; TiN
- Corner Radius (Decimal Inch): 0.0080
- Corner Radius (mm): 0.20
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.1250
- Cutting Width (mm): 3.18
- Full Radius: No
- Insert Holding Method: Screw
- Insert Material: Solid Carbide
- Insert Size: 11318020
- Insert Size Code: 11318020
- Insert Style: GIQR
- Iso Code: ISO 13399
- Manufacturer Grade: IC528
- Manufacturers Catalog Number: False
- Maximum Depth of Cut (Decimal Inch): 0.0500
- Maximum Depth of Cut (mm): 1.27
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Maximum Depth of Cut Range (mm): 0.00 to 2.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.4205
- Overall Length (mm): 10.68
- Primary Workpiece Material: Superalloy; Titanium
- Primary Workpiece Material Code: M; P; S
- Series: ChamGroove
- Single Or Double End: Single
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:02am UTC
Category: Grooving Inserts
