Grooving Insert: GIP247020P IC808, Solid Carbide MPN:6404114
Grooving Insert: GIP247020P IC808, Solid Carbide MPN:6404114 is available to buy in increments of 10

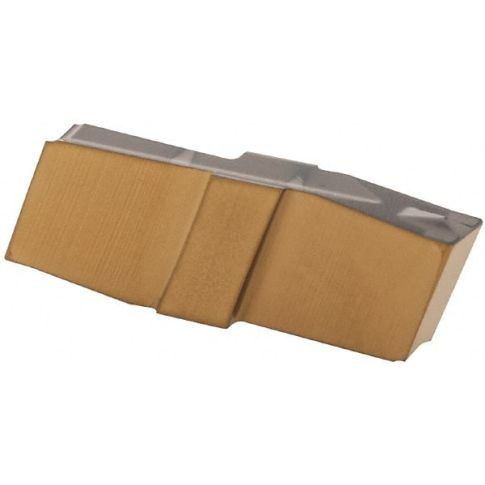

Grooving Insert: GIP247020P IC808, Solid Carbide
Grooving Insert: GIP247020P IC808, Solid Carbide AlTiN, TiAlN & TiN Finish, Neutral, 2.47 mm Cutting Width, 5 mm Max Depth, Series Cut-Grip
Product Information
- : 6404114
- Chip Breaker: P
- Coating Process: PVD
- Coating/Finish: AlTiN; TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0079
- Corner Radius (mm): 0.20
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.0972
- Cutting Width (mm): 2.47
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 247020
- Insert Size Code: 247020
- Insert Style: GIP
- Iso Code: ISO 13399
- Manufacturer Grade: IC808
- Maximum Depth of Cut (Decimal Inch): 0.1970
- Maximum Depth of Cut (mm): 5.00
- Maximum Depth of Cut Range (Decimal Inch): 0.1500 to 0.2000
- Maximum Depth of Cut Range (mm): 5.00 to 10.00
- Msc/Manufacturer Number: False
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.6024
- Overall Length (mm): 15.30
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; P; S
- Rake: Positive
- Rake Angle: 7.00
- Series: Cut Grip
- Single Or Double End: Double
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.07
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:10am UTC
Category: Grooving Inserts
