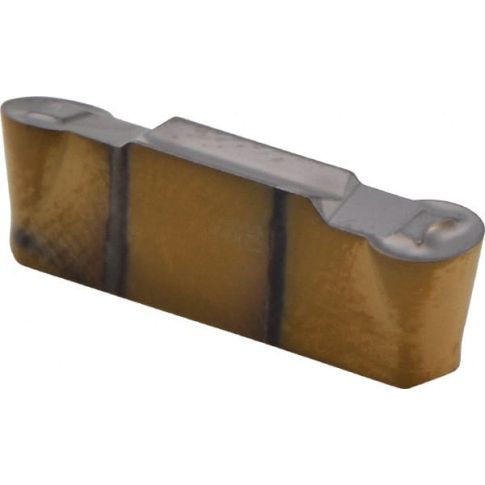

Grooving Insert: HFPR4020 IC808, Solid Carbide MPN:6200307
Grooving Insert: HFPR4020 IC808, Solid Carbide MPN:6200307 is available to buy in increments of 10
Grooving Insert: HFPR4020 IC808, Solid Carbide
Grooving Insert: HFPR4020 IC808, Solid Carbide AlTiN, TiAlN & TiN Finish, Right Hand, 4 mm Cutting Width, 2 mm Max Depth, Series Heliface
Product Information
- : 6200307
- Coating Process: PVD
- Coating/Finish: AlTiN; TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0787
- Corner Radius (mm): 2.00
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.1575
- Cutting Width (mm): 4.00
- Full Radius: Yes
- Gage Diameter (Decimal Inch): 0.9488
- Insert Hand: Right Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 4020
- Insert Size Code: 4020
- Insert Style: HFPR
- Iso Code: ISO 13399
- Manufacturer Grade: IC808
- Material Grade: Submicron
- Maximum Depth of Cut (Decimal Inch): 0.0787
- Maximum Depth of Cut (mm): 2.00
- Maximum Depth of Cut Range (Decimal Inch): 0.0750 to 0.1000
- Maximum Depth of Cut Range (mm): 2.00 to 3.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.7480
- Overall Length (mm): 19.00
- Overall Width (Decimal Inch - 4 Decimals): 0.1575
- Overall Width (mm): 4.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; P; S
- Rake: Positive
- Rake Angle: 7.00
- Series: Heliface
- Single Or Double End: Double
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 0.01
- Package Width: 0.01
- Package Height: 0.01
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:12am UTC
Category: Grooving Inserts
