Grooving Insert: GPV8234 IC8250, Solid Carbide MPN:6405265
Grooving Insert: GPV8234 IC8250, Solid Carbide MPN:6405265 is available to buy in increments of 10

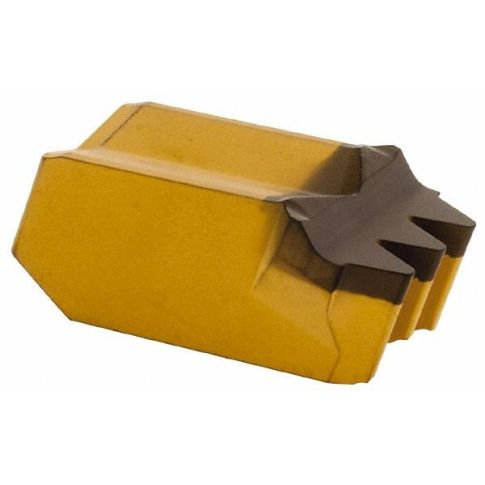

Grooving Insert: GPV8234 IC8250, Solid Carbide
Grooving Insert: GPV8234 IC8250, Solid Carbide Al2O3 Finish, Neutral, 7.48 mm Cutting Width, 2.21 mm Max Depth, Series Cut-Grip
Product Information
- : 6405265
- Coating Process: PVD
- Coating/Finish: Al2O3
- Corner Radius (Decimal Inch): 0.0079
- Corner Radius (mm): 0.20
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.2945
- Cutting Width (mm): 7.48
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 8234
- Insert Size Code: 82343
- Insert Style: GPV
- Iso Code: ISO 13399
- Manufacturer Grade: IC8250
- Maximum Depth of Cut (Decimal Inch): 0.0870
- Maximum Depth of Cut (mm): 2.21
- Maximum Depth of Cut Range (Decimal Inch): 0.0750 to 0.1000
- Maximum Depth of Cut Range (mm): 2.00 to 3.00
- Msc/Manufacturer Number: False
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.6024
- Overall Length (mm): 15.30
- Primary Workpiece Material: Stainless Steel; Steel
- Primary Workpiece Material Code: M; P
- Rake: Positive
- Rake Angle: 7.00
- Series: Cut Grip
- Single Or Double End: Single
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.05
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 12:43am UTC
Category: Grooving Inserts
