Grooving Insert: GIP318159P IC808, Solid Carbide MPN:6405117
Grooving Insert: GIP318159P IC808, Solid Carbide MPN:6405117 is available to buy in increments of 10

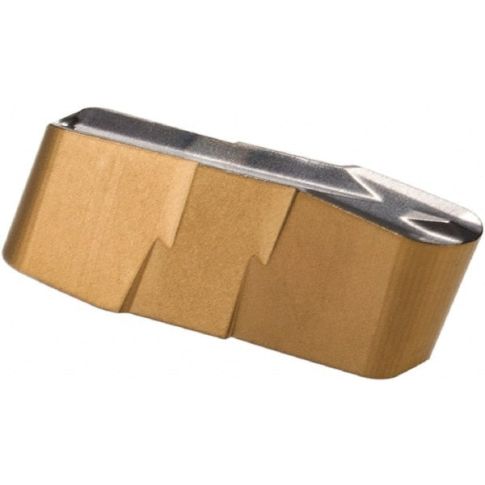

Grooving Insert: GIP318159P IC808, Solid Carbide
Grooving Insert: GIP318159P IC808, Solid Carbide AlTiN, TiAlN & TiN Finish, Neutral, 3.18 mm Cutting Width, 12.19 mm Max Depth, Series Cut-Grip
Product Information
- : 6405117
- Chip Breaker: P
- Coating Process: PVD
- Coating/Finish: AlTiN; TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0630
- Corner Radius (mm): 1.60
- Cutting Height (Decimal Inch): 0.1970
- Cutting Height (mm): 5.00
- Cutting Tool Application: Grooving; Parting; Turning
- Cutting Width (Decimal Inch): 0.1250
- Cutting Width (mm): 3.18
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Self Grip
- Insert Material: Solid Carbide
- Insert Size: 318159
- Insert Size Code: 318159
- Insert Style: GIP
- Iso Code: GIP 3.18-1.59
- Manufacturer Grade: IC808
- Manufacturers Catalog Number: False
- Material Grade: Submicron
- Maximum Depth of Cut (Decimal Inch): 0.4800
- Maximum Depth of Cut (mm): 12.19
- Maximum Depth of Cut Range (Decimal Inch): 0.3000 to 1.0000
- Maximum Depth of Cut Range (mm): 10.00 to 20.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.6020
- Overall Length (mm): 15.29
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; P; S
- Rake: Positive
- Rake Angle: 7.00
- Series: Cut Grip
- Single Or Double End: Double
- Standards: ISO 13399
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:02am UTC
Category: Grooving Inserts
