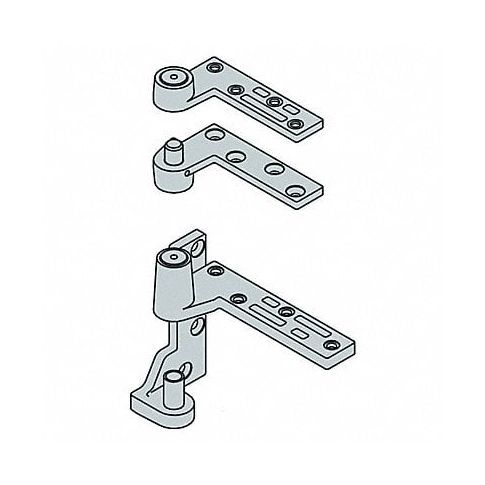

Offset Pivot Hinge Full Mortise 500 lb. MPN:7215 SET LH US26D

Use an Ives pivot hinge set for mounting heavier doors, especially in high-traffic areas. Installation requires both top and bottom pivots to be installed: top pivot is header-mount; bottom is base plate-mount.
• Maximum door load 500 lb.
• 3/16" vertical adjustment range, with positive locking

Technical Specifications

• Item Pivot Hinge
• Material Brass
• Finish Satin Chrome
• Load Capacity 500.0 lb
• Holes With
• Holes per Leaf 4
• Ligature Resistant No
• Range of Motion 180 Degrees
• Orientation Left Hand
• Door Leaf Thickness 0.375 in
• Frame Leaf Thickness 0.375 in
• Required Door Thickness 1 3/4 in
• Bearing Type Sleeve
• Corners Square
• Hardware Included
• Mounting Full Mortise
• Pin Dia. 1/2 in
• Pin Material Brass
• Pin Type Nonremovable
• Standards ANSI A156.4
• Door Leaf Height 4 3/4 in
• Door Leaf Width 1 1/8 in
• Frame Leaf Height 4 3/4 in

Manufacturer Details

• Manufacturer: Ives
• Condensed Mfg Number: 7215SETLHUS26D
• MPN: 7215 SET LH US26D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CA
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Pivot Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
