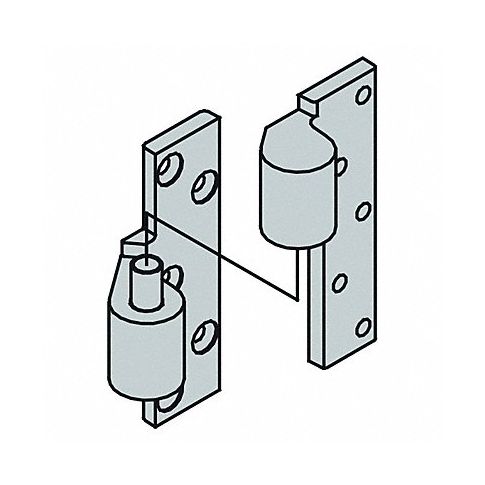

Offset Pivot Hinge Full Mortise 1000 lb. MPN:7230F SET US32D
Offset Pivot Hinge Full Mortise 1000 lb.
Use an Ives offset pivot hinge set for mounting heavier doors, especially in high-traffic areas. Installation requires both top and bottom pivots to be installed: top pivot is header-mount; bottom is base plate-mount. UL Listed for use with 3-hr. fire doors.• Maximum door load 1000 lb.• 3/16" vertical adjustment range, with positive locking
Technical Specifications
- Item Pivot Hinge
- Material Brass
- Finish Stainless Steel
- Load Capacity 1,000.0 lb
- Holes With
- Holes per Leaf 6
- Ligature Resistant No
- Range of Motion 180 Degrees
- Orientation Non Handed
- Door Leaf Thickness 0.375 in
- Frame Leaf Thickness 0.375 in
- Required Door Thickness 1 3/4 in
- Bearing Type Sleeve
- Corners Square
- Hardware Included
- Mounting Full Mortise
- Pin Dia. 1/2 in
- Pin Material Steel
- Pin Type Nonremovable
- Standards ANSI A156.4
- Door Leaf Width 1 5/16 in
- Frame Leaf Height 4 5/16 in
Manufacturer Details
- Manufacturer: Ives
- Condensed Mfg Number: 7230FSETUS32D
- MPN: 7230F SET US32D
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CA
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8301406030
- GDS Category Name: Pivot Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 2:28pm UTC
Category: Latches Hasps and Hinges
