Heavy Weight Hinge Steel MPN:5BB1HW 4.5X4.5 652

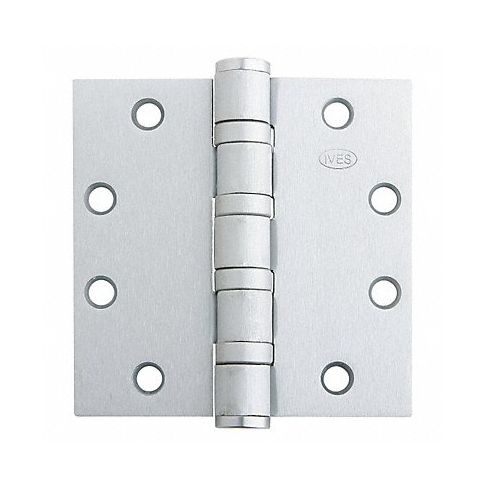

For frequently used heavy-weight doors, this 5-knuckle, ball bearing, full-mortise steel butt hinge from Ives provides smooth, dependable operation and long service life. 8 standard template countersunk holes are arranged in a half-moon shape—4 on each side—for easy mounting into recessed cutouts with either wood screws or metal screws (both included). Removable pins accommodate applications that require frequent door removal.

Technical Specifications

• Item Butt Hinge
• Material Steel
• Finish Satin Chrome
• Load Capacity 250.0 lb
• Holes With
• Holes per Leaf 4
• Ligature Resistant No
• Range of Motion 110 Degrees
• Orientation Non Handed
• Door Leaf Height 4 1/2 in
• Frame Leaf Height 4 1/2 in
• Door Leaf Width 1 13/16 in
• Frame Leaf Width 1 13/16 in
• Door Leaf Thickness 0.18 in
• Frame Leaf Thickness 0.18 in
• Required Door Thickness 1-3/4 in
• Bearing Type Ball
• Corners Square
• Hardware Included
• Mounting Full Mortise
• Number of Wires 0
• Pin Dia. 1/4 in
• Pin Material Steel
• Pin Type Removable
• Standards ANSI/BHMA A156.1

Manufacturer Details

• Manufacturer: Ives
• Condensed Mfg Number: 5BB1HW45X45652
• MPN: 5BB1HW 4.5X4.5 652

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8302104030
• GDS Category Name: Door and Butt Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
