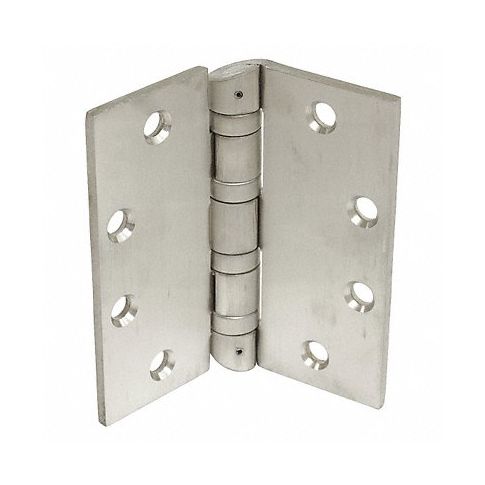

Heavy Weight Hinge Steel Hospital Tip MPN:5BB1HWHT 4.5X4.5 652

For frequently used heavy-weight doors, this 5-knuckle, ball bearing, full-mortise steel butt hinge from Ives provides smooth, dependable operation and long service life. 8 standard template countersunk holes are arranged in a half-moon shape—4 on each side—for easy mounting into recessed cutouts with either wood screws or metal screws (both included). Hospital tip design is ligature resistant, making it an ideal choice for hospitals and penal institutions.

Technical Specifications

• Item Butt Hinge
• Material Steel
• Finish Satin Chrome
• Load Capacity 250.0 lb
• Holes With
• Holes per Leaf 4
• Ligature Resistant Yes
• Range of Motion 110 Degrees
• Orientation Non Handed
• Door Leaf Height 4 1/2 in
• Frame Leaf Height 4 1/2 in
• Door Leaf Width 1 13/16 in
• Frame Leaf Width 1 13/16 in
• Door Leaf Thickness 0.18 in
• Frame Leaf Thickness 0.18 in
• Required Door Thickness 1-3/4 in
• Bearing Type Ball
• Corners Square
• Hardware Included
• Mounting Full Mortise
• Number of Wires 0
• Pin Dia. 1/4 in
• Pin Material Steel
• Pin Type Hospital Tip
• Standards ANSI/BHMA A156.1

Manufacturer Details

• Manufacturer: Ives
• Condensed Mfg Number: 5BB1HWHT45X45652
• MPN: 5BB1HWHT 4.5X4.5 652

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8302104030
• GDS Category Name: Door and Butt Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
