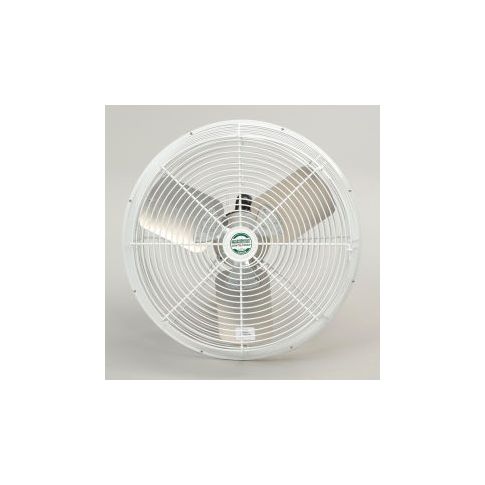

J&D 12" Barnstormer Variable Speed With Standard Bracket VBS12 1/10 HP 1020 CFM VBS12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-666968
J&D 12"" Barnstormer Variable Speed With Standard Bracket VBS12 1/10 HP 1020 CFM VBS12
BARNSTORMER AIR CIRCULATOR FANS
12" Fan with Standard Bracket
Tapered side guard condenses exhaust air into a tight stream to create a higher velocity that throws air farther than most basket fans. Features a hinged open patented front wire guard for maximum air flow, lower energy usage, increased air velocity and easy maintenance. Enclosed, efficient direct drive motor has sealed ball bearings and built-in thermal overload protection for long life. Ready for hardwire. Includes bracket for easy installation. Motor is variable speed when used with a variable speed control. 3 aluminum blades. Motor is UL & cUL Listed. Fully Assembled. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
Key Features
12" Fan with Standard Bracket
Tapered side guard condenses exhaust air into a tight stream to create a higher velocity that throws air farther than most basket fans. Features a hinged open patented front wire guard for maximum air flow, lower energy usage, increased air velocity and easy maintenance. Enclosed, efficient direct drive motor has sealed ball bearings and built-in thermal overload protection for long life. Ready for hardwire. Includes bracket for easy installation. Motor is variable speed when used with a variable speed control. 3 aluminum blades. Motor is UL & cUL Listed. Fully Assembled. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
Key Features
- Patented Open Front Guard: The Barnstormer is the only fan on the market with the hinged open front guard. This patented design helps cut cleaning and maintenance time. Dirt and dust are removed in minutes to get you right back to energy-efficient, high-output performance.
- Fan ships fully assembled.
- Includes hot dip galvanized ceiling mount bracket.
- Industry leading air velocity.
- Quiet operation.
- Direct drive motors with no belts or bearings to maintain.
- Guards are white powder coated for easy cleaning and corrosion resistance.
- Variable speed motors on 12" - 24" models (Requires optional variable speed control to adjust speed).
- Totally enclosed, maintenance-free, direct drive high-efficiency motors have completely sealed ball bearings, UL and cUL recognized, and covered by a Two Year Warranty.
- Single phase models have automatic overload protection.
- Can be used with J&D's optional misting/fogging product line.
Product Specifications
- BRANDJ&D Manufacturing
- ASSEMBLYAssembled
- CFM HIGH1,705
- WIDTH INCHES15
- HEIGHT INCHES15
- LENGTH INCHES15
- FAN DIAMETER INCHES12
- WEIGHT LBS19
- MANUFACTURER'S PART NUMBERVBS12
- COLOR FINISHWhite
- BLADE FINISHWhite
- CONSTRUCTIONCorrosion Resistant, Powder Coated Metal
- HORSEPOWER1/10
- FAN TYPEIndustrial, Agricultural
- RPM HIGH 1,705
- PHASE1
- AMPS1.12
- HERTZ (HZ)60
- VOLTAGE115 / 230
- SPEEDS1
- MOTOR TYPETotally Enclosed
- DRIVE TYPEDirect Drive
- DECIBELS (DBA)56
- OSCILLATING/NON-OSCILLATINGNon-Oscillating
- LIMITED WARRANTY YEARS2
- APPROVALS OR CERTIFICATIONSUL & cUL Listed, CSA Certified
- APPLICATIONGreenhouses, Factories, Warehouses, Stadiums, Dairy Barns
- DESCRIPTIONBarnstormer Basket Fan
- INCLUDESFan with Wall Mount
- MOUNT TYPEWall / Ceiling
- POWER CORD TYPENot Included
- MAX AMBIENT TEMPERATURE °F104
- BLADE TYPEAluminum
- BLADE QUANTITY3
- MODEL968666
Additional Information
- UPC: 00688963253277
- UNSPSC: 40101609
- Brand: J & D Manufacturing
- Color: White
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: WI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 25.00
Product info last updated on November 7, 2024 11:51am UTC
Category: Cooling Fans
