Blower 150 cfm 115V 1.1A 1550 rpm MPN:35000-7100

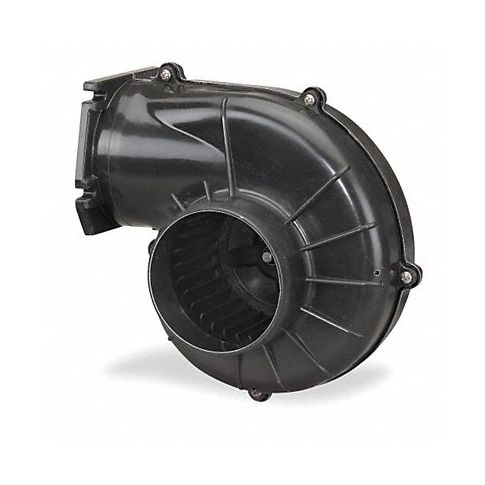

The JABSCO flange-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Round
• With Flange Yes
• Blower Wheel Diameter 3 1/4 in
• Blower Wheel Width 2 1/2 in
• Blower Item Plastic Blower
• Blower Voltage 115V AC
• Blower Motor Type Shaded Pole
• Blower Thermal Protection Auto
• Blower Conduit Box No
• CFM @ 0.000-In. SP 150
• CFM @ 0.200-In. SP 115
• Hz 60
• Phase 1
• Full Load Amps 1.10
• RPM 1550
• Bearing Type Sleeve
• Motor Enclosure Open Dripproof
• Lead Length 13 in
• Max. Ambient Temp. 130 Degrees F
• Max. Inlet Temp. 104 Degrees F
• Inlet Dia. 4 in
• Outlet Dia. 3 3/4 in
• Overall Height 9 in
• Overall Width 8 3/4 in
• Overall Depth 7 5/8 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position Shaft Horizontal
• Housing Material Reinforced Plastic
• Agency Compliance NMMA

Manufacturer Details

• Manufacturer: Jabsco
• Condensed Mfg Number: 350007100
• MPN: 35000-7100

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
