Blower 150 cfm 24VDCV 3.3A 2500 rpm MPN:34739-0020

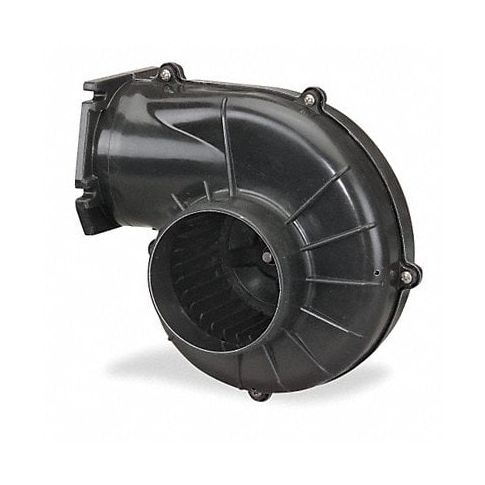

The JABSCO flange-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Round
• With Flange Yes
• Blower Wheel Diameter 3 1/4 in
• Blower Wheel Width 1 3/4 in
• Blower Item Plastic Blower
• Blower Voltage 24V DC
• Blower Motor Type Wound Field DC
• Blower Thermal Protection No Thermal Protection
• Blower Conduit Box No
• CFM @ 0.000-In. SP 150
• CFM @ 0.100-In. SP 135
• CFM @ 0.150-In. SP 133
• CFM @ 0.200-In. SP 131
• CFM @ 0.300-In. SP 130
• CFM @ 0.400-In. SP 125
• CFM @ 0.500-In. SP 120
• CFM @ 0.600-In. SP 117
• CFM @ 0.700-In. SP 114
• CFM @ 0.800-In. SP 110
• CFM @ 0.900-In. SP 100
• CFM @ 1.000-In. SP 90
• CFM @ 1.200-In. SP 80
• CFM @ 1.600-In. SP 55
• CFM @ 2.000-In. SP 20
• Full Load Amps 3.30
• RPM 2500
• Bearing Type Sleeve
• Motor Enclosure Totally Enclosed
• Motor Insulation Class A
• Lead Length 15 in
• Max. Ambient Temp. 130 Degrees F
• Max. Inlet Temp. 130 Degrees F
• Inlet Dia. 3 in
• Outlet Dia. 3 in
• Overall Height 7 5/8 in
• Overall Width 6 3/4 in
• Overall Depth 7 7/8 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position Multi Positional
• Housing Finish Black
• Housing Material Glass Filled Polypropylene
• Housing Color Black
• Agency Compliance ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410

Manufacturer Details

• Manufacturer: Jabsco
• Condensed Mfg Number: 347390020
• MPN: 34739-0020

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
