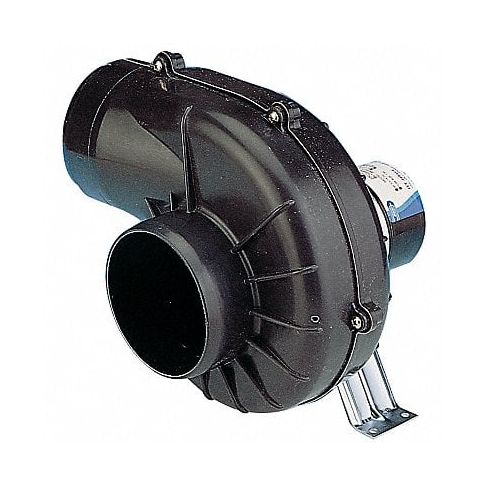

Blower 105 cfm 12VDCV 4.3A 3500 rpm MPN:35515-0010

The JABSCO flex-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Flex-mount motor features a universal bracket that permits outlet to face any direction. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Round
• With Flange No
• Blower Wheel Diameter 3 1/4 in
• Blower Wheel Width 1 3/4 in
• Blower Item Plastic Blower
• Blower Voltage 12V DC
• Blower Motor Type Wound Field DC
• Blower Thermal Protection No Thermal Protection
• Blower Conduit Box No
• CFM @ 0.000-In. SP 105
• CFM @ 0.100-In. SP 100
• CFM @ 0.150-In. SP 97
• CFM @ 0.200-In. SP 95
• CFM @ 0.300-In. SP 90
• CFM @ 0.400-In. SP 85
• CFM @ 0.500-In. SP 80
• CFM @ 0.600-In. SP 75
• CFM @ 0.700-In. SP 71
• CFM @ 0.800-In. SP 68
• CFM @ 0.900-In. SP 64
• CFM @ 1.000-In. SP 60
• CFM @ 1.200-In. SP 55
• CFM @ 1.600-In. SP 15
• Full Load Amps 4.30
• RPM 3500
• Bearing Type Sleeve
• Motor Enclosure Totally Enclosed
• Motor Insulation Class A
• Lead Length 15 in
• Max. Ambient Temp. 130 Degrees F
• Max. Inlet Temp. 130 Degrees F
• Inlet Dia. 3 in
• Outlet Dia. 3 in
• Overall Height 5 1/2 in
• Overall Width 7 in
• Overall Depth 4 3/4 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position Multi Positional
• Housing Finish Black
• Housing Material Glass Filled Polypropylene
• Housing Color Black
• Agency Compliance ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
• Includes Mounting Bracket
