Blower 150 cfm 24VDCV 3.3A 2500 rpm MPN:36740-0010
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5PHD8
Blower 150 cfm 24VDCV 3.3A 2500 rpm

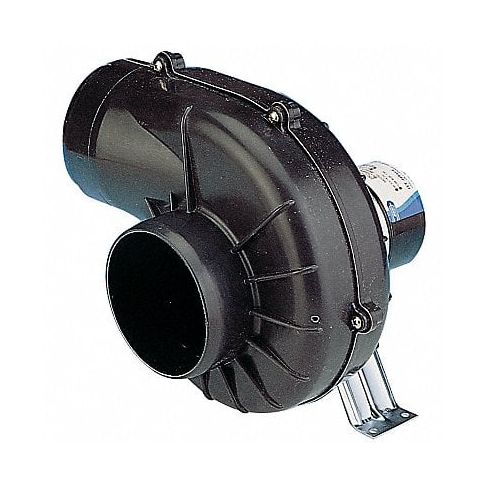

The JABSCO flex-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Flex-mount motor features a universal bracket that permits outlet to face any direction. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.
Technical Specifications
- Item OEM Blower
- Blower Outlet Shape Round
- With Flange No
- Blower Wheel Diameter 3 1/4 in
- Blower Wheel Width 1 3/4 in
- Blower Item Plastic Blower
- Blower Voltage 24V DC
- Blower Motor Type Wound Field DC
- Blower Thermal Protection No Thermal Protection
- Blower Conduit Box No
- CFM @ 0.000-In. SP 150
- CFM @ 0.100-In. SP 135
- CFM @ 0.150-In. SP 133
- CFM @ 0.200-In. SP 131
- CFM @ 0.300-In. SP 130
- CFM @ 0.400-In. SP 125
- CFM @ 0.500-In. SP 120
- CFM @ 0.600-In. SP 117
- CFM @ 0.700-In. SP 114
- CFM @ 0.800-In. SP 110
- CFM @ 0.900-In. SP 100
- CFM @ 1.000-In. SP 90
- CFM @ 1.200-In. SP 80
- CFM @ 1.600-In. SP 55
- CFM @ 2.000-In. SP 20
- Full Load Amps 3.30
- RPM 2500
- Bearing Type Sleeve
- Motor Enclosure Totally Enclosed
- Motor Insulation Class A
- Lead Length 15 in
- Max. Ambient Temp. 130 Degrees F
- Max. Inlet Temp. 130 Degrees F
- Inlet Dia. 3 in
- Outlet Dia. 3 in
- Overall Height 9 1/4 in
- Overall Width 7 7/8 in
- Overall Depth 7 7/8 in
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position Multi Positional
- Housing Finish Black
- Housing Material Glass Filled Polypropylene
- Housing Color Black
- Agency Compliance ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
- Includes Mounting Bracket
Manufacturer Details
- Manufacturer: Jabsco
- Condensed Mfg Number: 367400010
- MPN: 36740-0010
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
