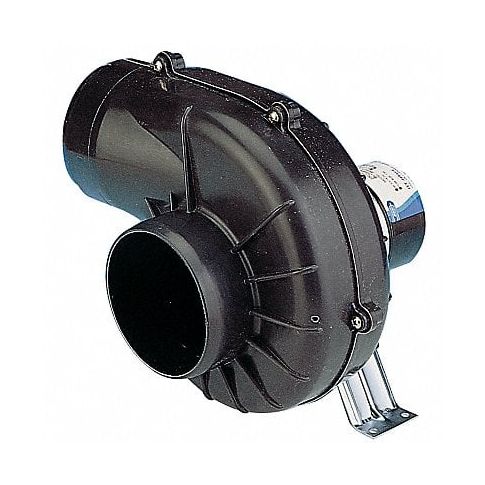

Blower 250 cfm 12VDCV 10A 2500 rpm MPN:35440-0000

The JABSCO flex-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Flex-mount motor features a universal bracket that permits outlet to face any direction. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Round
• With Flange No
• Blower Wheel Diameter 4 in
• Blower Wheel Width 2 1/2 in
• Blower Item Plastic Blower
• Blower Voltage 12V DC
• Blower Motor Type Wound Field DC
• Blower Thermal Protection No Thermal Protection
• Blower Conduit Box No
• CFM @ 0.000-In. SP 250
• CFM @ 0.100-In. SP 245
• CFM @ 0.150-In. SP 243
• CFM @ 0.200-In. SP 241
• CFM @ 0.300-In. SP 240
• CFM @ 0.400-In. SP 238
• CFM @ 0.500-In. SP 230
• CFM @ 0.600-In. SP 225
• CFM @ 0.700-In. SP 215
• CFM @ 0.800-In. SP 212
• CFM @ 0.900-In. SP 209
• CFM @ 1.000-In. SP 200
• CFM @ 1.200-In. SP 185
• CFM @ 1.600-In. SP 155
• CFM @ 2.000-In. SP 115
• Full Load Amps 10
• RPM 2500
• Bearing Type Sleeve
• Motor Enclosure Totally Enclosed
• Motor Insulation Class A
• Lead Length 15 in
• Max. Ambient Temp. 130 Degrees F
• Max. Inlet Temp. 130 Degrees F
• Inlet Dia. 4 in
• Outlet Dia. 4 in
• Overall Height 9 5/8 in
• Overall Width 9 1/8 in
• Overall Depth 9 3/16 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position Multi Positional
• Housing Finish Black
• Housing Material Dielectrite 44-10 HG
• Housing Color Black
• Agency Compliance ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
• Includes Mounting Bracket
