Blower 250 cfm 24VDCV 5.3A 2500 rpm MPN:35440-0010

Discount: See in Cart
Free Shipping
In Stock
Brand: Jabsco
Part #: 35440-0010
UPC: 00671880030267
SKU
226-CXO-5PHE0
$373.29

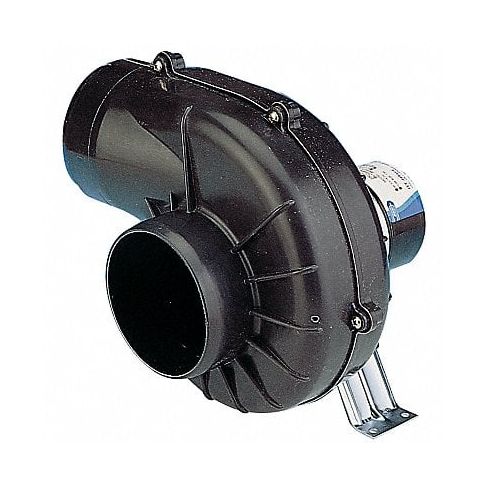

Blower 250 cfm 24VDCV 5.3A 2500 rpm
The JABSCO flex-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Flex-mount motor features a universal bracket that permits outlet to face any direction. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.

Technical Specifications

  • Item OEM Blower
  • Blower Outlet Shape Round
  • With Flange No
  • Blower Wheel Diameter 4 in
  • Blower Wheel Width 2 1/2 in
  • Blower Item Plastic Blower
  • Blower Voltage 24V DC
  • Blower Motor Type Wound Field DC
  • Blower Thermal Protection No Thermal Protection
  • Blower Conduit Box No
  • CFM @ 0.000-In. SP 250
  • CFM @ 0.100-In. SP 245
  • CFM @ 0.150-In. SP 243
  • CFM @ 0.200-In. SP 241
  • CFM @ 0.300-In. SP 240
  • CFM @ 0.400-In. SP 238
  • CFM @ 0.500-In. SP 230
  • CFM @ 0.600-In. SP 225
  • CFM @ 0.700-In. SP 215
  • CFM @ 0.800-In. SP 212
  • CFM @ 0.900-In. SP 209
  • CFM @ 1.000-In. SP 200
  • CFM @ 1.200-In. SP 185
  • CFM @ 1.600-In. SP 155
  • CFM @ 2.000-In. SP 115
  • Full Load Amps 5.30
  • RPM 2500
  • Bearing Type Sleeve
  • Motor Enclosure Totally Enclosed
  • Motor Insulation Class A
  • Lead Length 15 in
  • Max. Ambient Temp. 130 Degrees F
  • Max. Inlet Temp. 130 Degrees F
  • Inlet Dia. 4 in
  • Outlet Dia. 4 in
  • Overall Height 9 5/8 in
  • Overall Width 9 1/8 in
  • Overall Depth 9 3/16 in
  • Wheel Type Forward Curve
  • Drive Type Direct
  • Mounting Position Multi Positional
  • Housing Finish Black
  • Housing Material Dielectrite 44-10 HG
  • Housing Color Black
  • Agency Compliance ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410
  • Includes Mounting Bracket

Manufacturer Details

  • Manufacturer: Jabsco
  • Condensed Mfg Number: 354400010
  • MPN: 35440-0010

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8414599080
  • GDS Category Name: Centrifugal Blowers with Motor
  • GDS Family Name: Industrial Blowers and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101601
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Air circulation and parts and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Blowers
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC Category: Industrial Blowers and Accessories
