JET® HDT Series Manual Trolley 262010 2200 Lb. Cap. 262010
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-32154B15
JET® HDT Series Manual Trolley 262010 2200 Lb. Cap. 262010 Plumbing, Electrical, Tools, and More. Top Brands. Shop Today. Get Free Shipping.

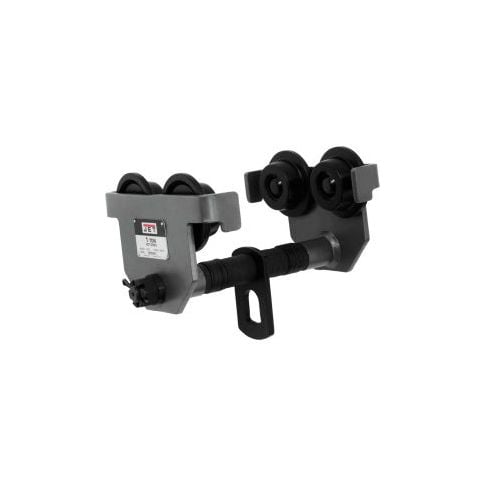

JET® HDT Series Manual Trolley, 2200 Lbs. Cap.
JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards
Durability
JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards
Durability
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
- Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Certification- Load tested to 125% of capacity with certificate
Product Specifications
- LENGTH INCHES13-1/2
- WIDTH INCHES4
- HEIGHT INCHES7
- CAPACITY LBS2200
- COLOR FINISHWhite
- APPROVAL/REGULATIONSOSHA Regulations, ANSI / ASME B30.11 and B30.17
- ASSEMBLYAssembled
- BEAM WIDTH INCHES3 to 8
- BRANDJET®
- CONSTRUCTIONSteel
- HEAD ROOM INCHES5-1/10
- I-BEAM HEIGHT INCHES5 to 24-1/2
- LIMITED WARRANTY2 Years
- MANUFACTURERS PART NUMBER262010
- MAX. FLANGE THICKNESS INCHES8
- MINIMUM RADIUS CURVE INCHES39
- OPERATIONManual
- PACKAGE QUANTITY1
- REFERENCE #1-HDT
- SERIESHDT
- WEIGHT LBS17.25
- UPC662755524646
Additional Information
- UPC: 662755524646
- UNSPSC: 24101511
- Brand: JET Equipment
- Color: White
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: TN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 13.50
- Package Width: 4.00
- Package Height: 7.00
- Package Weight: 18.00
Product info last updated on December 13, 2024 4:20pm UTC
Category: Hoists and Trolleys
