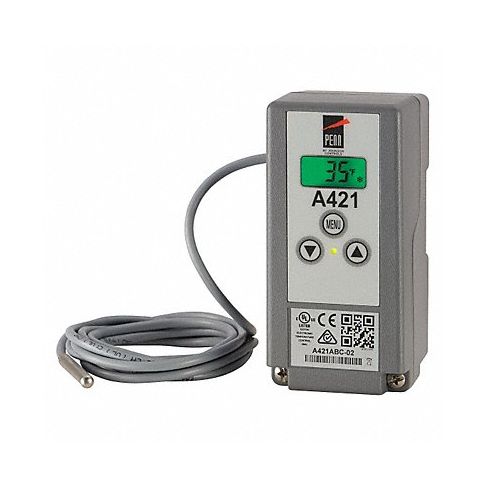

Electronic Temperature Control 2-3/8in D MPN:A421ABD-02C

Single-stage unit features an LCD and 3-button touchpad interface that can be configured to restrict user adjustments. Model has an Off-Cycle Defrost control with adjustable defrost cycle duration and frequency.

Technical Specifications

• Item Electronic Temperature Control
• Switch Type SPDT
• Switch Action Open/Close on Rise
• Voltage Range 120/240V AC
• Control Range -40 Degrees to 212 Degrees F
• Differential 1 Degrees to 30 Degrees F
• Number of Relay Inputs 1
• Number of Relay Outputs 1
• Full Load Amps @ 120VAC 16 A
• Full Load Amps @ 240VAC 8 A
• Sensor Type A99
• Sensing Bulb Dia. 1/4 in
• Sensing Bulb Length 2 in
• Enclosure Type NEMA 1
• Height 5 in
• Width 2 3/8 in
• Depth 2 3/8 in
• Color Gray
• Standards UL, C-UL listed
• Agency Compliance UL, C-UL listed
• Display Color Black/White
• Display Size 1.5 x .5 sq in
• Display Type LCD
• Includes A99 Temp Sensor
• Features Removable Sensor with Screw Terminals, Keypad Lock Out, Sensor Failure, Adjustable Anti Short Cycle Delay
• For Use With Suitable for Temperature Control In Heating, Cooling Applications

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: A421ABD02C
• MPN: A421ABD-02C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032100060
• GDS Category Name: Electronic Temperature Controls
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112209
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Thermostats
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
