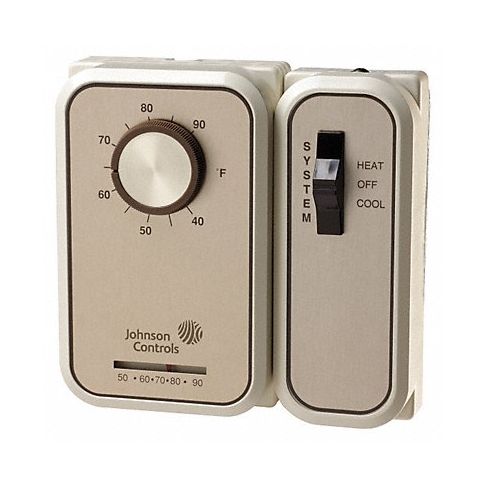

Fan Coil Tstat Analog 1 Pipe 24-277V AC MPN:T46SAA-1C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-36P601
Fan Coil Tstat Analog 1 Pipe 24-277V AC
Introducing the Johnson Controls Fan Coil Tstat Analog 1 Pipe 24-277V AC - designed for superior temperature control in commercial and residential settings! With a lockable cover to deter unauthorized access, this thermostat features concealed and adjustable low and high temperature stops. Its narrow differential ensures optimal performance without the need for an anticipator, while dual Celsius and Fahrenheit scales offer versatile temperature readings. Ideal for use in HVAC and refrigeration systems, this mechanical thermostat offers reliable operation and unbeatable control of fan coil units, making it an essential tool for anyone seeking precise temperature management.
Top product features:
- Lockable cover to deter unauthorized access
- Concealed and adjustable low and high temperature stops
- Narrow differential for optimal performance
Top product applications:
- Commercial building temperature control
- Residential air conditioning regulation
- HVAC systems management
With a lockable cover that helps reduce unauthorized access this Johnson Controls line volt mechanical thermostat comes with low and high temperature dial stops that are concealed and adjustable throughout the setpoint range. Model has a narrow differential without the need for anticipator and standard internal dual Celsius and Fahrenheit scales.
Technical Specifications
- Item Line Volt Mechanical Tstat
- Thermostat Switch Type SPDT
- Thermostat Control Range 40 Degrees to 90 Degrees F
- Thermostat Voltage 24 to 277V AC
- Full Load Amps @ 120VAC 15 A
- Full Load Amps @ 240VAC 3 A
- Thermostat Programmable No
- Remote Sensing Capability No
- Thermostat Heating/Cooling Heating/Cooling
- Thermostat Item Line Voltage Mechanical Thermostat
- Remote Sensing Bulb Included No
- Switch Action Open/Close on Rise and Open/Close on Fall
- Number of Switches 2
- Differential 0.7 Degrees F
- Height 5 in
- Width 3 in
- Depth 3 in
- Sensor Type Bi-Metal
- Color Brown
- Enclosure Type NEMA 1
- Inductive Amps @ 120V 6.5 A
- Inductive Amps @ 208V 6.5 A
- Inductive Amps @ 240V 6.5 A
- Locked Rotor Amps @ 120V 36 A
- Locked Rotor Amps @ 240V 18 A
- Pilot Duty Contacts (VA) 125 VA
- Mounting Location Wall
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: T46SAA1C
- MPN: T46SAA-1C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Fan Coil Unit Thermostats
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: HVAC Controls and Thermostats
