Pipe-Mount Sensor Temp 10F Differential MPN:A19DAC-1C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-38Y073

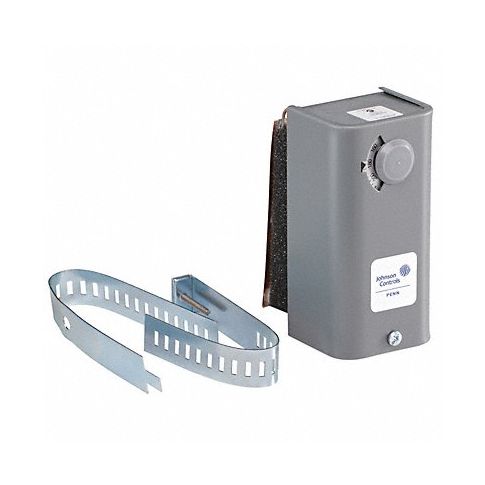

Pipe-Mount Sensor Temp 10F Differential
Introducing Johnson Controls' Pipe-Mount Sensor Temp 10F Differential - your ideal solution for temperature control in HVAC and refrigeration systems. This robust thermostat offers a line voltage mechanism with SPDT switch type, an extensive temperature control range of 100F to 240F, and voltage compatibility from 24V AC to 277V AC. Its full load amps of 10A ensure efficient operation, while its robust design makes it ideal for a variety of applications. Use this thermostat in commercial or residential settings to precisely control temperature and maintain optimal comfort levels year-round. Enhance your HVAC and refrigeration systems with Johnson Controls' Pipe-Mount Sensor Temp 10F Differential today!
Top product features:
- Line Voltage Mechanical Thermostat
- SPDT Switch Type
- Extensive Temperature Control Range
Top product applications:
- HVAC systems in commercial buildings
- Refrigeration systems in supermarkets and food processing facilities
- Industrial processes that require precise temperature control
Buy Johnson Controls item #A19DAC-1C to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Line Volt Mechanical Tstat
- Thermostat Switch Type SPDT
- Thermostat Control Range 100 Degrees to 240 Degrees F
- Thermostat Voltage 24 to 277V AC
- Full Load Amps @ 120VAC 10 A
- Full Load Amps @ 240VAC 6 A
- Thermostat Programmable No
- Remote Sensing Capability No
- Thermostat Heating/Cooling Heating/Cooling
- Thermostat Item Line Voltage Mechanical Thermostat
- Remote Sensing Bulb Included No
- Switch Action Open/Close on Rise
- Number of Switches 1
- Differential 7 Degrees F
- Height 4 3/8 in
- Width 2 1/8 in
- Depth 1 13/16 in
- Temp. Sensitivity +/-4 Degrees F
- Color Gray
- Enclosure Type Steel, NEMA 1
- Inductive Amps @ 120V 10 A
- Inductive Amps @ 240V 6 A
- Locked Rotor Amps @ 120V 60 A
- Locked Rotor Amps @ 240V 36 A
- Contact Rating Resistive @ 120V 10 A
- Contact Rating Resistive @ 240V 6 A
- Pilot Duty Contacts (VA) 125 VA
- Standards UL E6688; CSA LR948/4813 02
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: A19DAC1C
- MPN: A19DAC-1C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pipe-Mounted Sensor Temperature Controls
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
